MONSTER V4

THE GIANT MONSTER!

Having the state of the art construction quality and innovative features, the Monster 4WD is the strongest, the most durable and the most fun to drive large scale 4WD in the market. Features such as 126x215mm ultra large Monster Tires, big bore shock absorbers, heavy duty cvd drive shafts makes the Monster V4  the perfect choice for real off-road enthusiasts.


              The RRV4 Features

  • Fourth generation chassis & suspension arms
  • Sophisticated 4WD ShaftDriven mechanics
  • Ultra strengthened chrome drive shaft and axle
  • Factory assembled chassis
  • Improved differential spiral bevel gears & diff house
  • Hard anodized alloy roll-cage
  • New design coil-over hydraulic shocks & progressive springs
  • CNC machined T6 aircraft alloy chassis
  • New 24 mm hexagonal rim-blocks
  • New Strengthened lower&upper long wishbones
  • 185mm Block-Stud patterned off-road tyres
  • Solid and durable side guards
  • Water-resistant receiver and battery box
  • Clear body shell
  • Ultra durable, heavy duty central steel double disc brake rotors and bronze pads
  • New design extended rear shock towers and shock absorbers
  • New design ultra hardened steel transmission gears
  • New design servo tray
  • Fully adjustable sway bars
  • New wishbone brackets
  • No-Stress-Effect polyamid front bumper
  • New enlarged 15 spoke wheels



Biggest large scale tyre Long suspension arms All steel front&rear differentials Heavy duty cvd front drive shafts Big bore shock absorbers
Heavy duty wishbones Polycarbonate side guards Twin shock towers Steel enforced suspension brackets Precut decal sheet



Technical Specifications
Length : 760 mm
Width : 570 mm
Overall height : 370 mm
Ground clearance : 42-95 mm
Weight : 13.4 kg
Wheelbase : 532-540 mm
Trackwidth

: 446/446 mm
Chassis material : T6 Alloy (4mm)
Suspension : Non-parallel non-line independent
Caster angle : 0-6 Adjustable
Camber angle : Adjustable
Toe angle : 0-3 Degrees
Roll Center : 3 Position Adjustable
Ackerman : 2 Position Adjustable
Front Kick-up : 10 Degrees
Rear Squat : 5 Degrees
Shock absorber : Coilover Oilfilled 3 step adjustable
Transmission : Full-Time 4WD Shaft driven 3 differentials
Gear ratio  : 4:3 to 12,3:1 (12 different GearBox ratios)
Tyre size : 126 x 215 mm
Engine type

: Zenoah - CY 23cc, 26cc, 27cc, 29cc *




COMPETITION Extra Features



SPORT

 COMPETITION
SUSPENSION SYSTEM
Alloy Shock Body
Machined Hinge Pins
Front-Rear Anti Roll Bars
Servo Savers with Ball Bearings
TRANSMISSION SYSTEM
Front CVD Drive Shafts
Hardened CV Drive Shafts
Hexagonal Drive Cups
Hexagonal Dif. Outputs
All Steel Transmission Gears
Steel Gear Drive Block
BRAKE SYSTEM
Double Disk Brakes

Large capacity 800cc fuel tank

Long wheel travel

The Competition series are optimized for ultimate challange. Our leading structure and engineering has powered us to race proven handling and durability. You can push the throttle inside the curves and push the limits for many hours during the race.

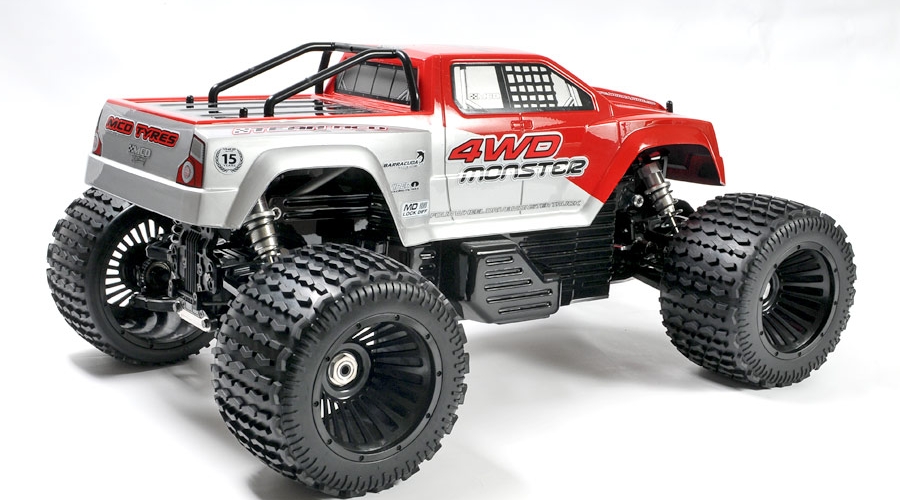

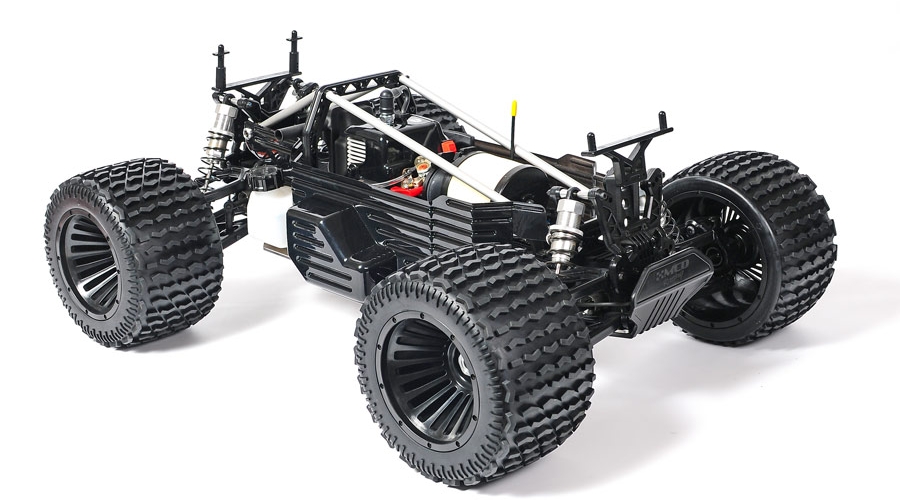

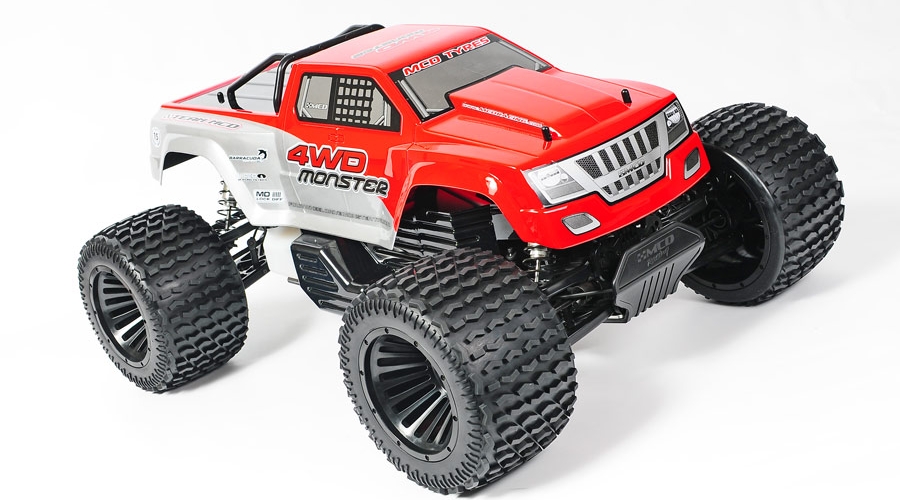

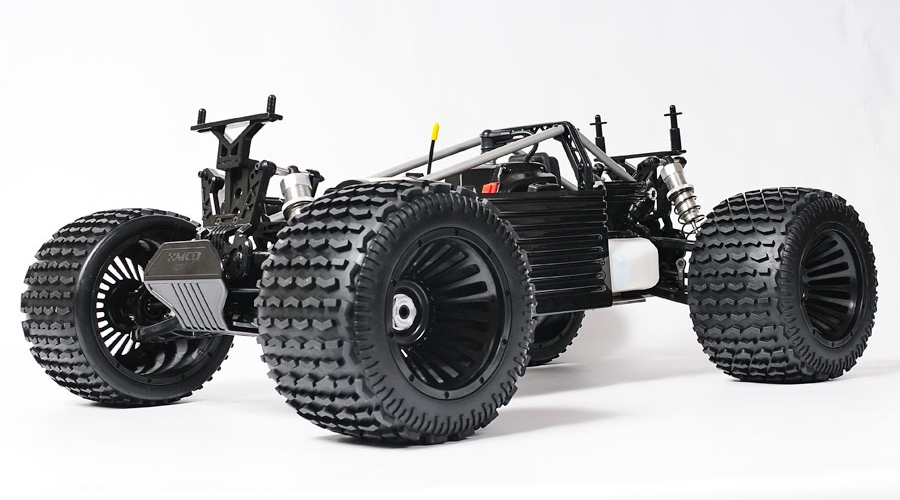

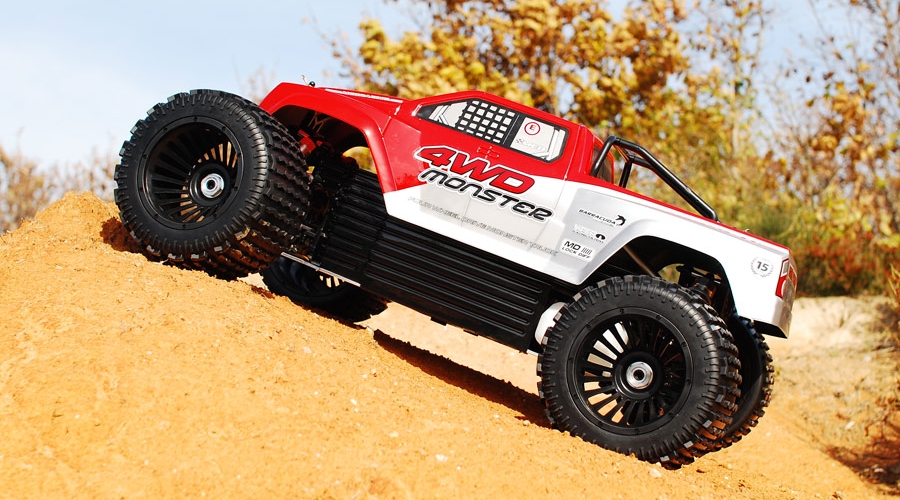

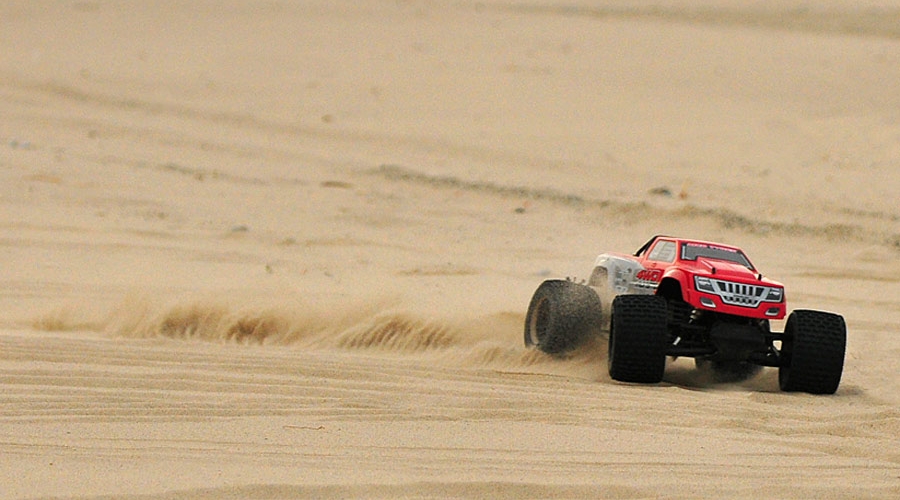

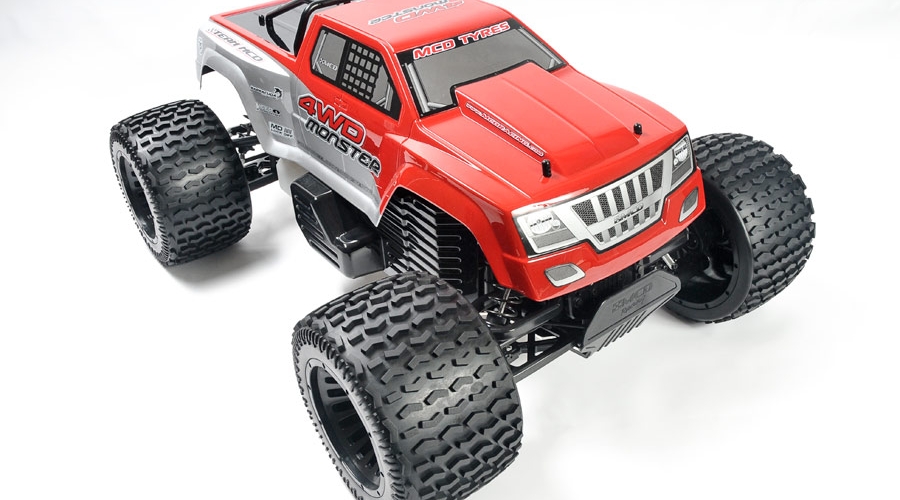

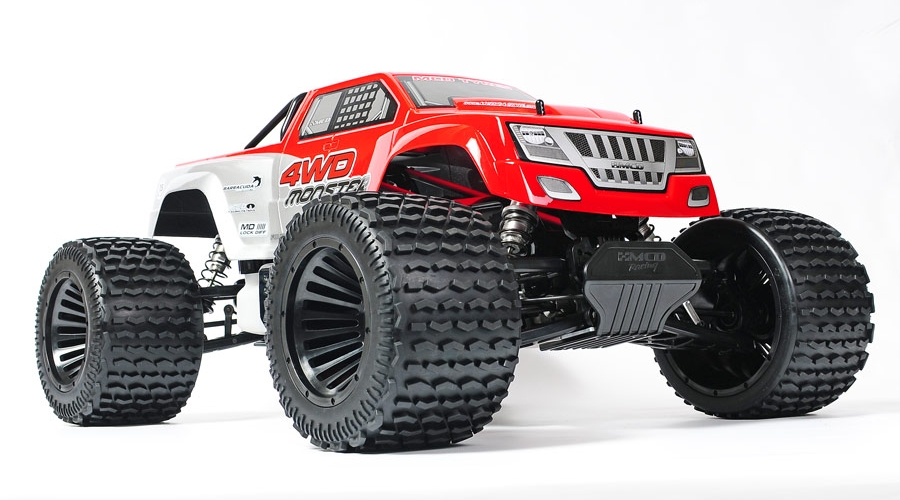

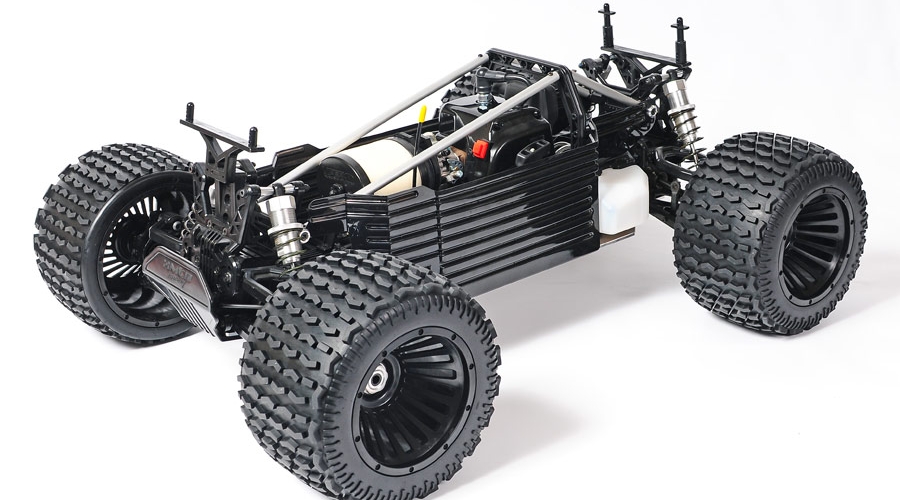

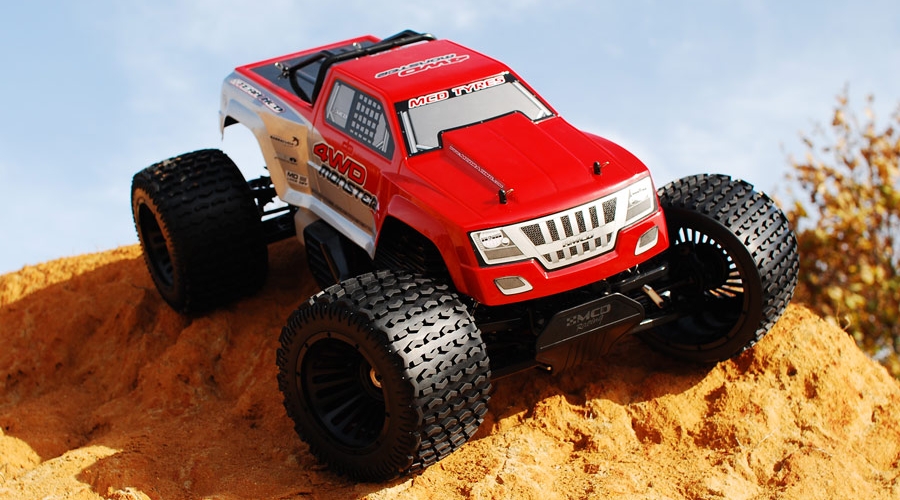

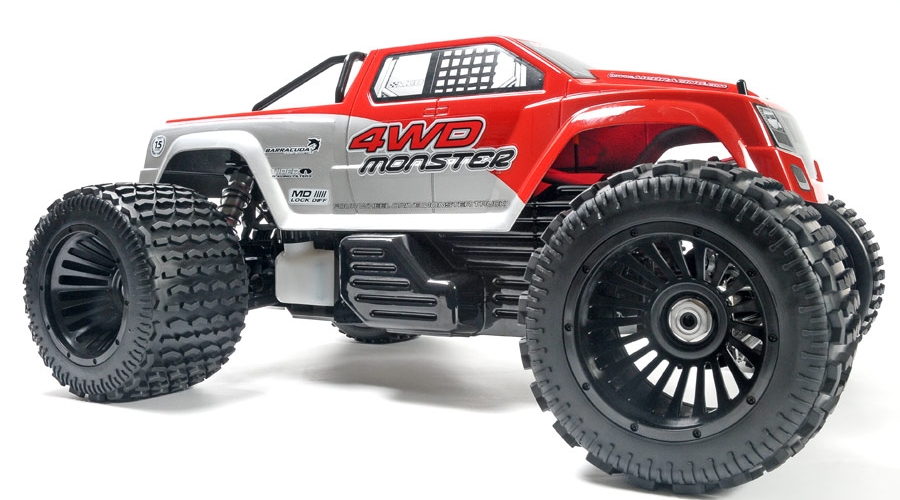

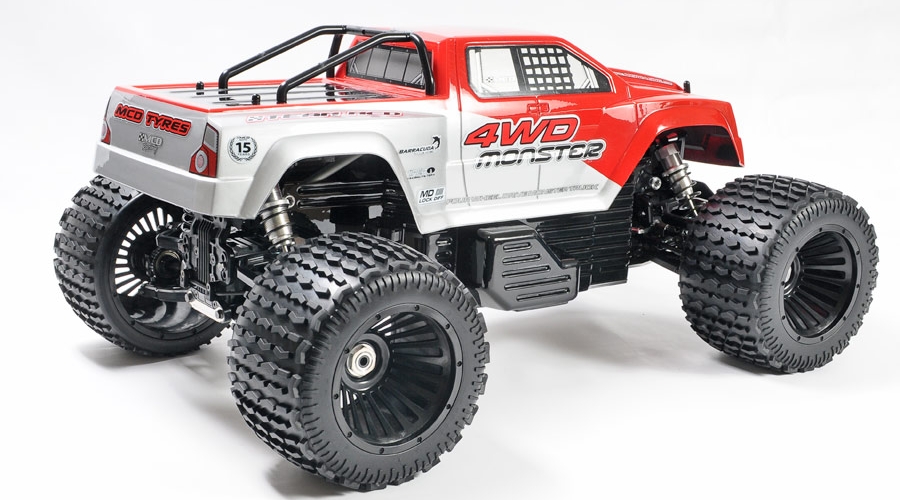

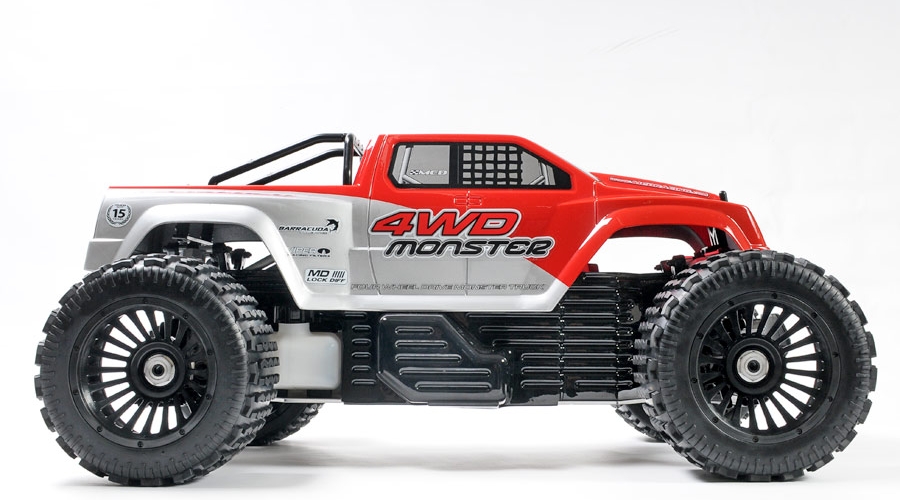

Photo Gallery
