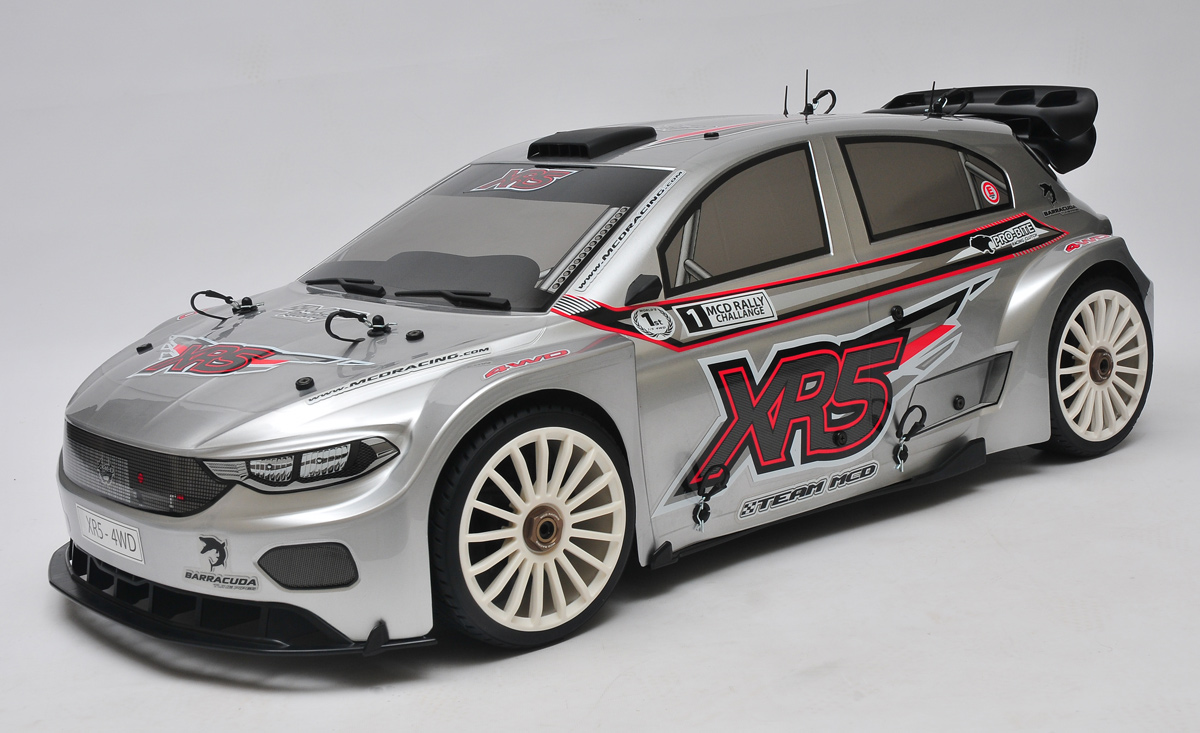

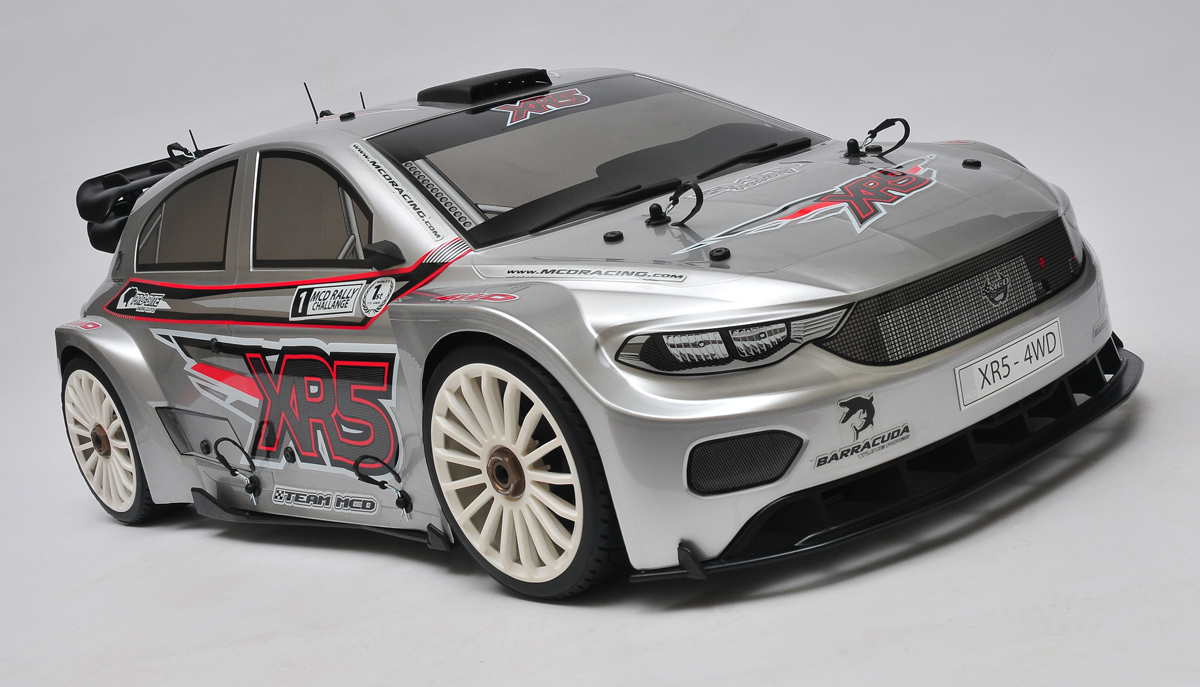

The Extended Rallycross
The new extended XR5 MAX is designed to offer a longer wheel-base option to our rallycross enthusiasts. The differences between the existing XR5 are the extended wheel base, widened track width, new body-shell, reinforced rear alloy stiffeners, alloy lay-shaft carrier, new alloy shock towers & shock bodies and completely new long chassis.
Order code: 00523003 XR5 Max Factory Team Spec
Recommended Retail Price: 1,749 EUR
|
 |
 |
- Top of the line competition Rallycross car

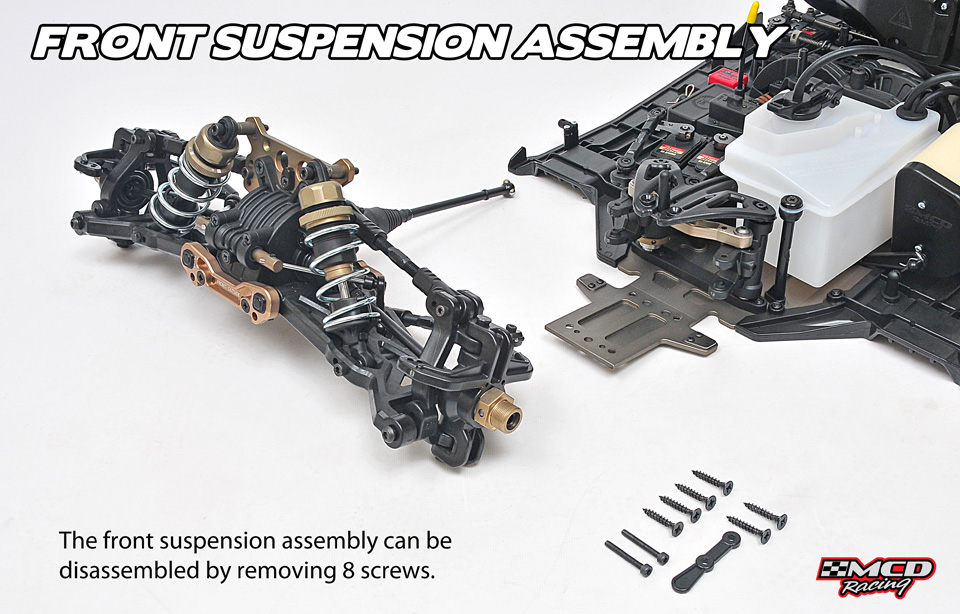

- Easy assembly/dis-assembly
- Easy maintenance
- Centralized and compacted parts layout on chassis
- Elite racing design ultra-durable high performance parts
- Fifth generation MCD chassis & suspension arms

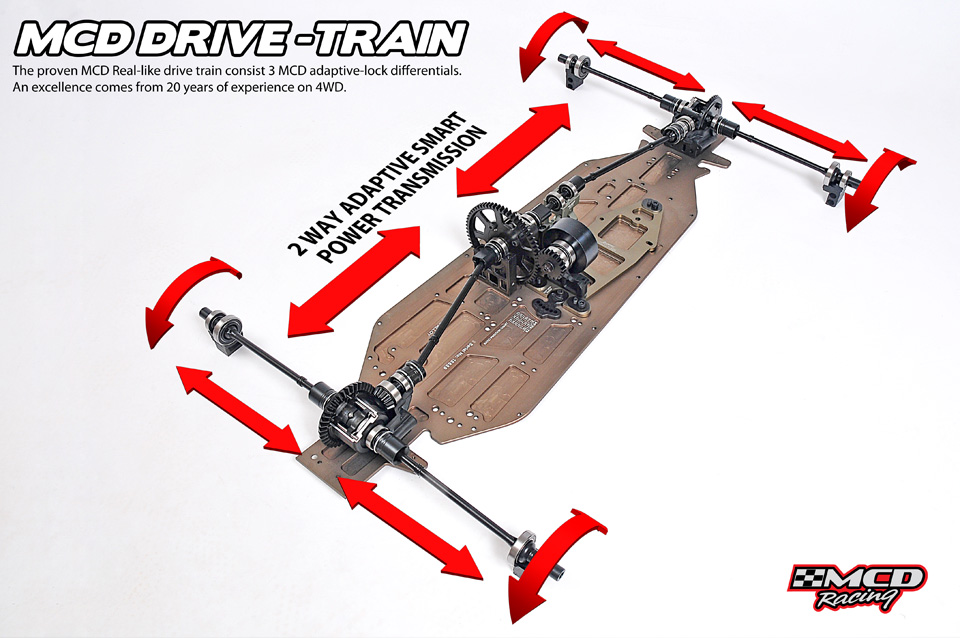

- Sophisticated full-time 4WD Shaft Driven mechanics

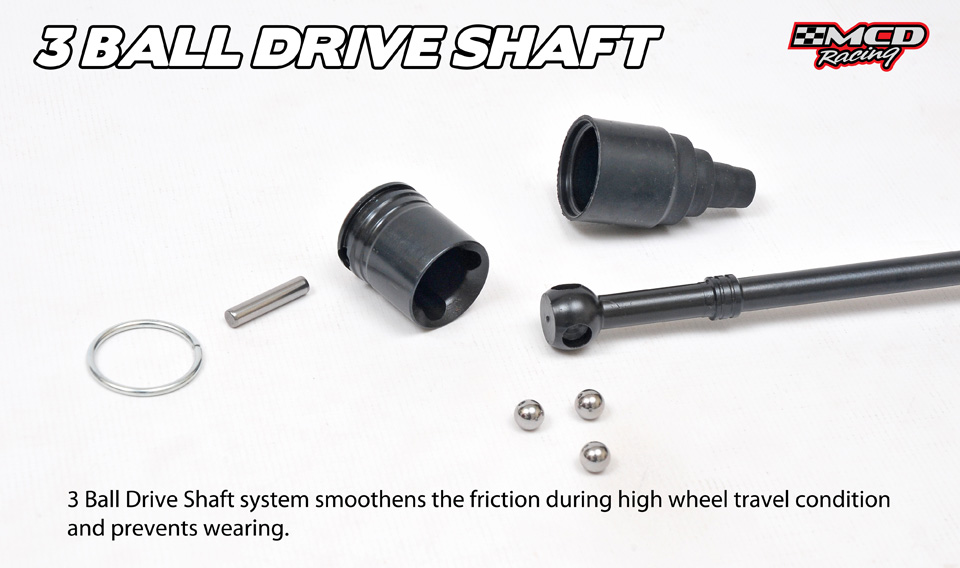

- Ultra strengthened chrome drive shaft and axle
- Easy gear mesh system

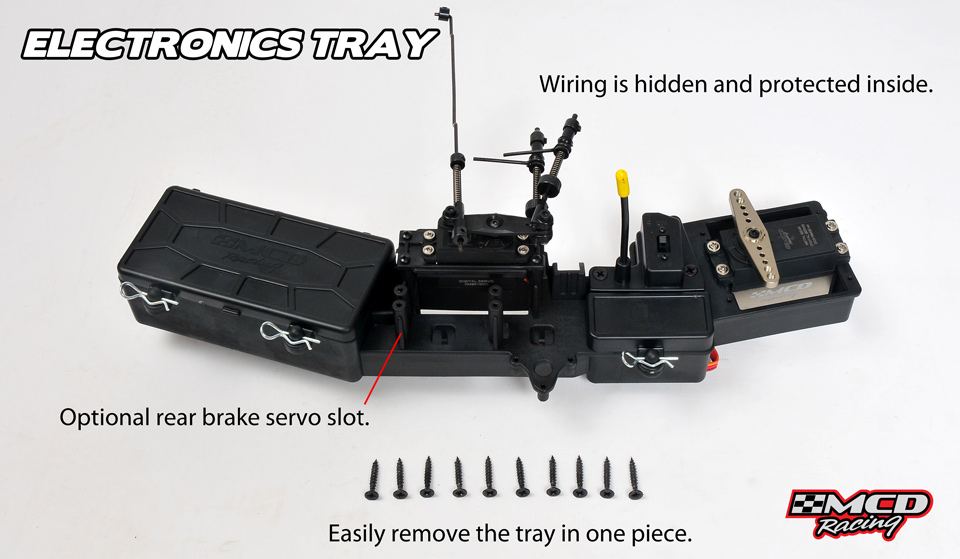

- Easily removable one-piece electronics tray

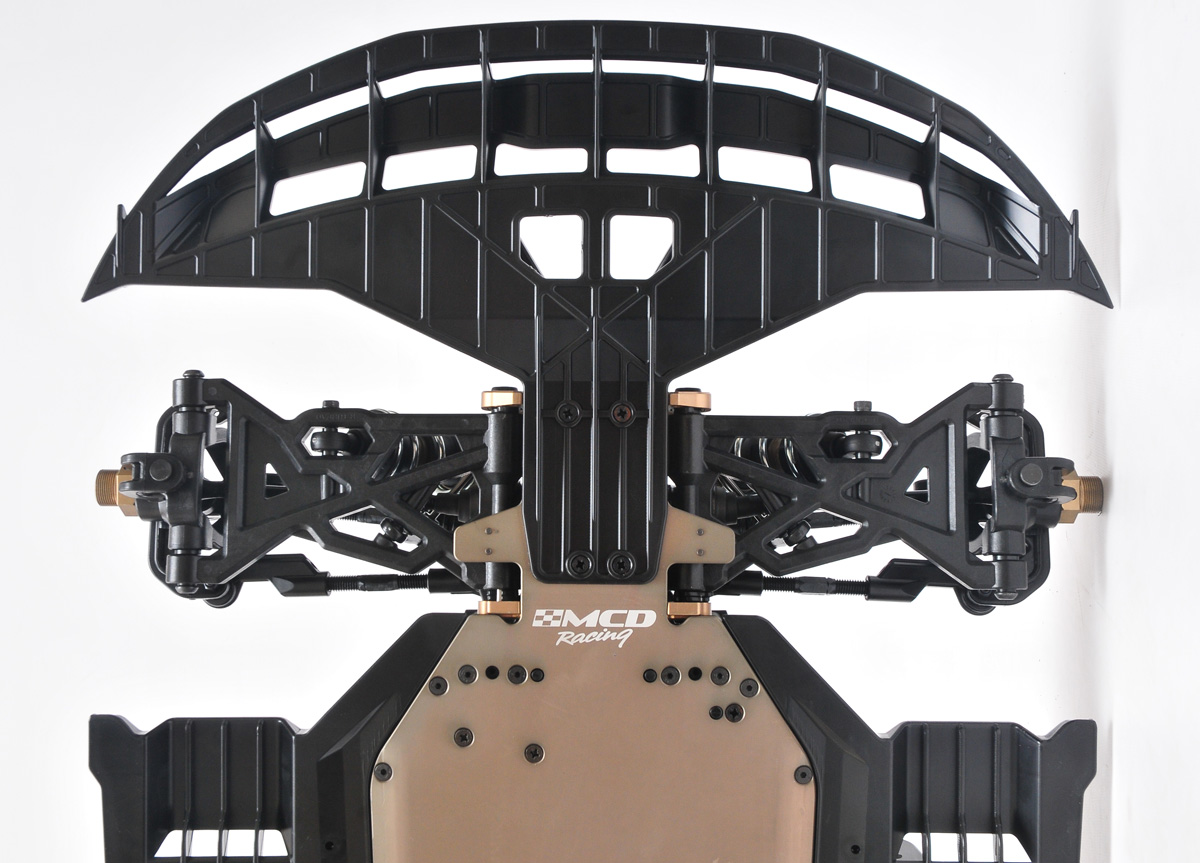

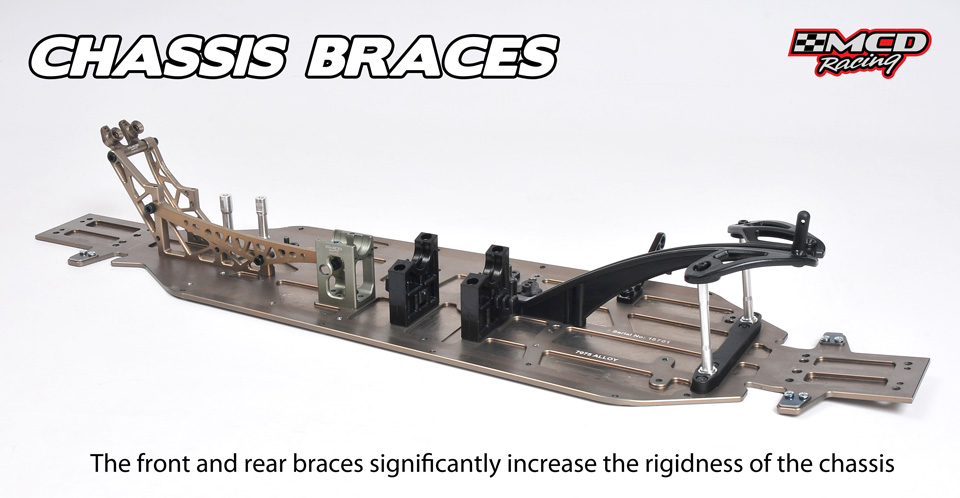

- CNC machined, anodized light-weight 7075 T6 aircraft alloy chassis

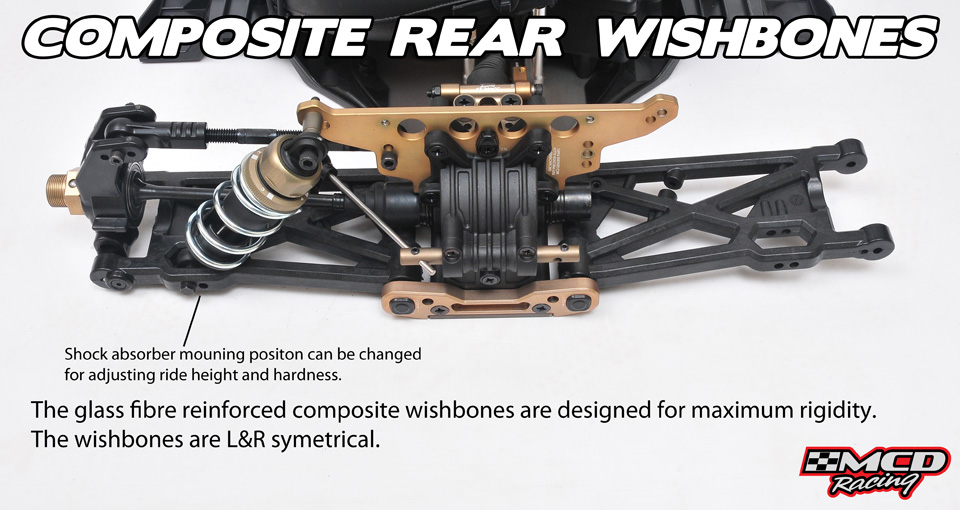

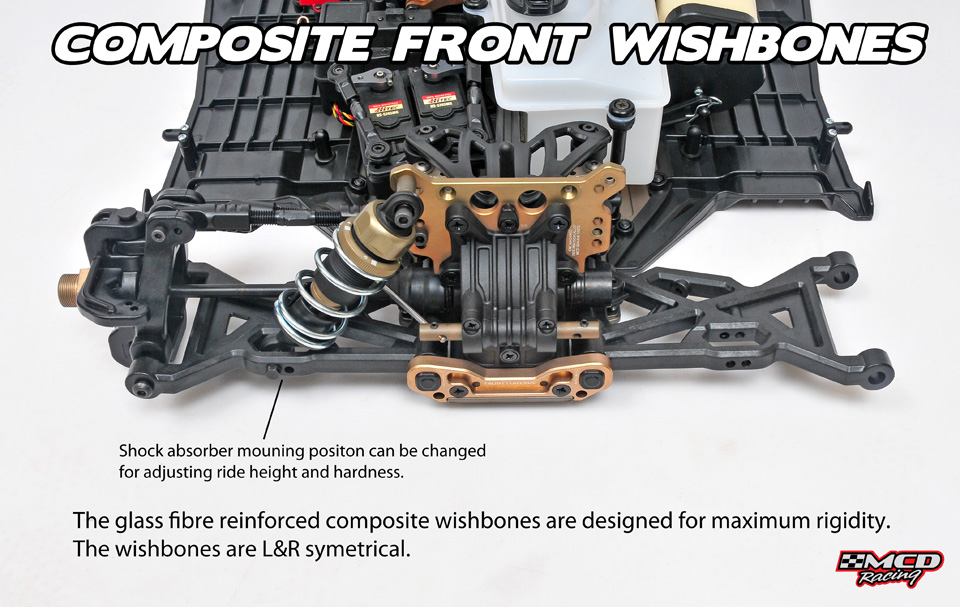

- Strengthened long wishbones

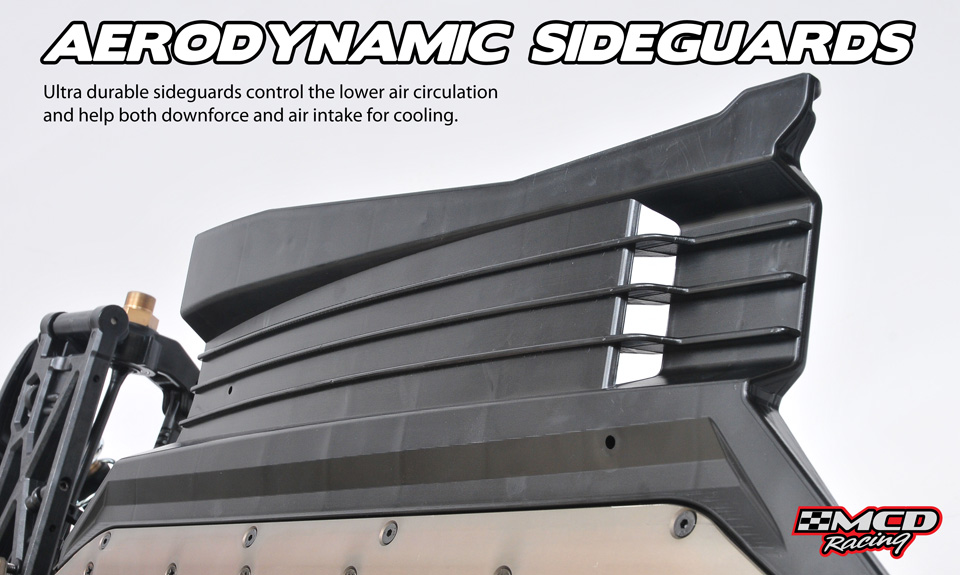

- Solid and durable aerodynamic side guards

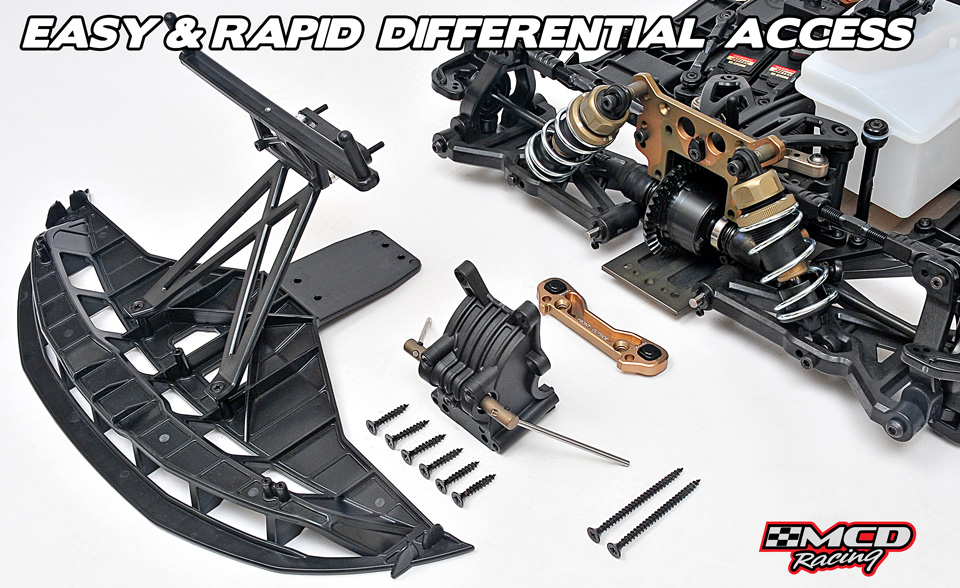

- Easily removable composite front, rear and center diff houses

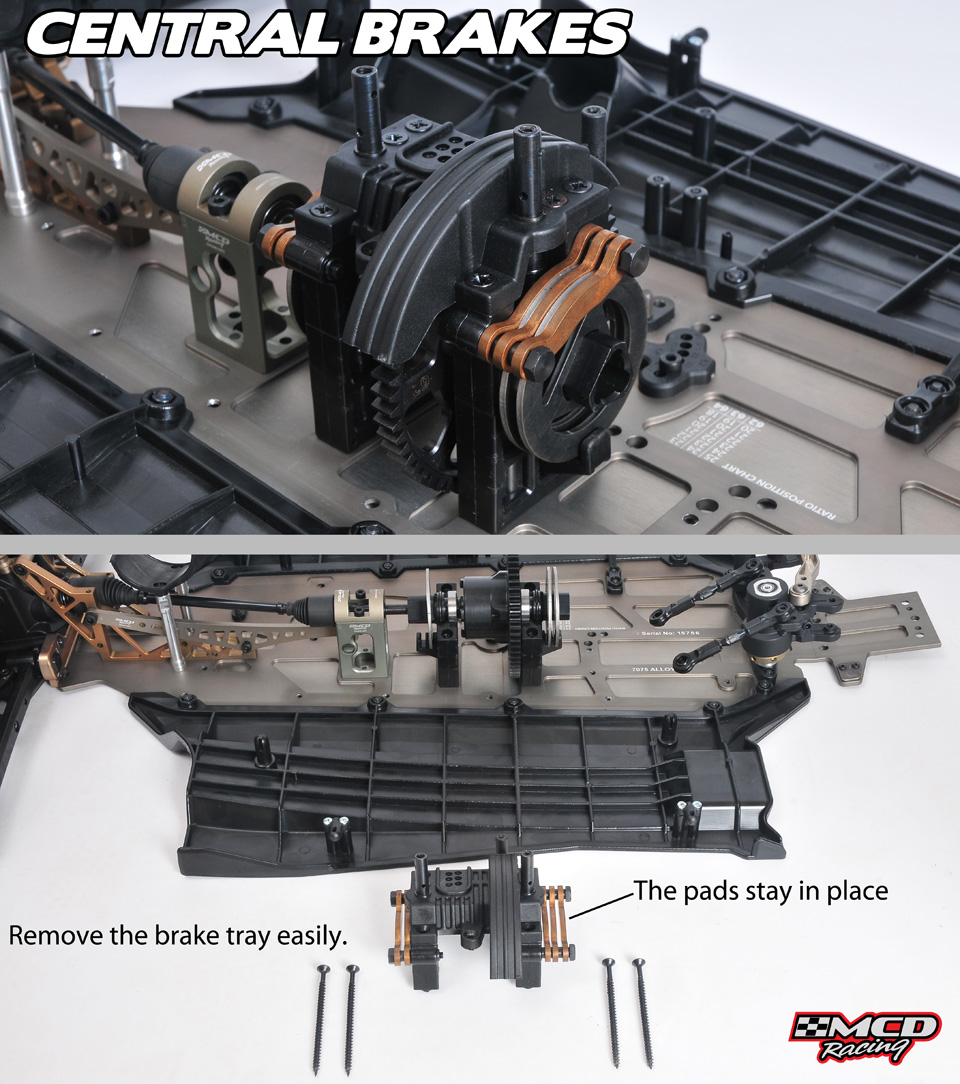

- Ultra durable front and rear adjustable brake system

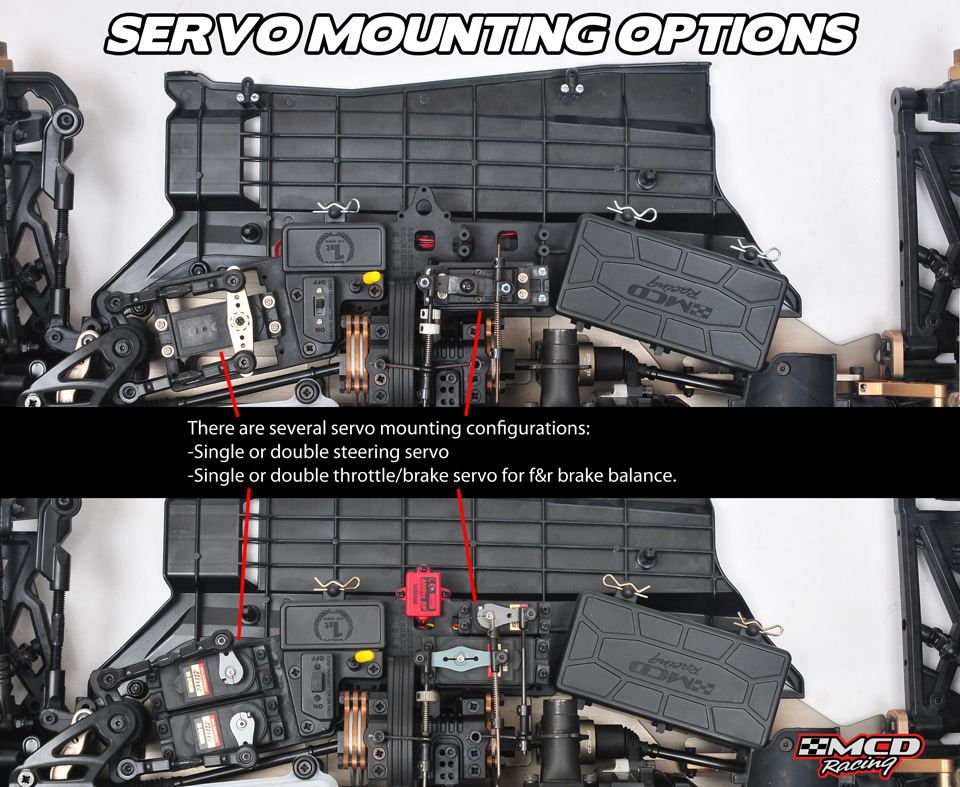

- Rear-brake only servo slot

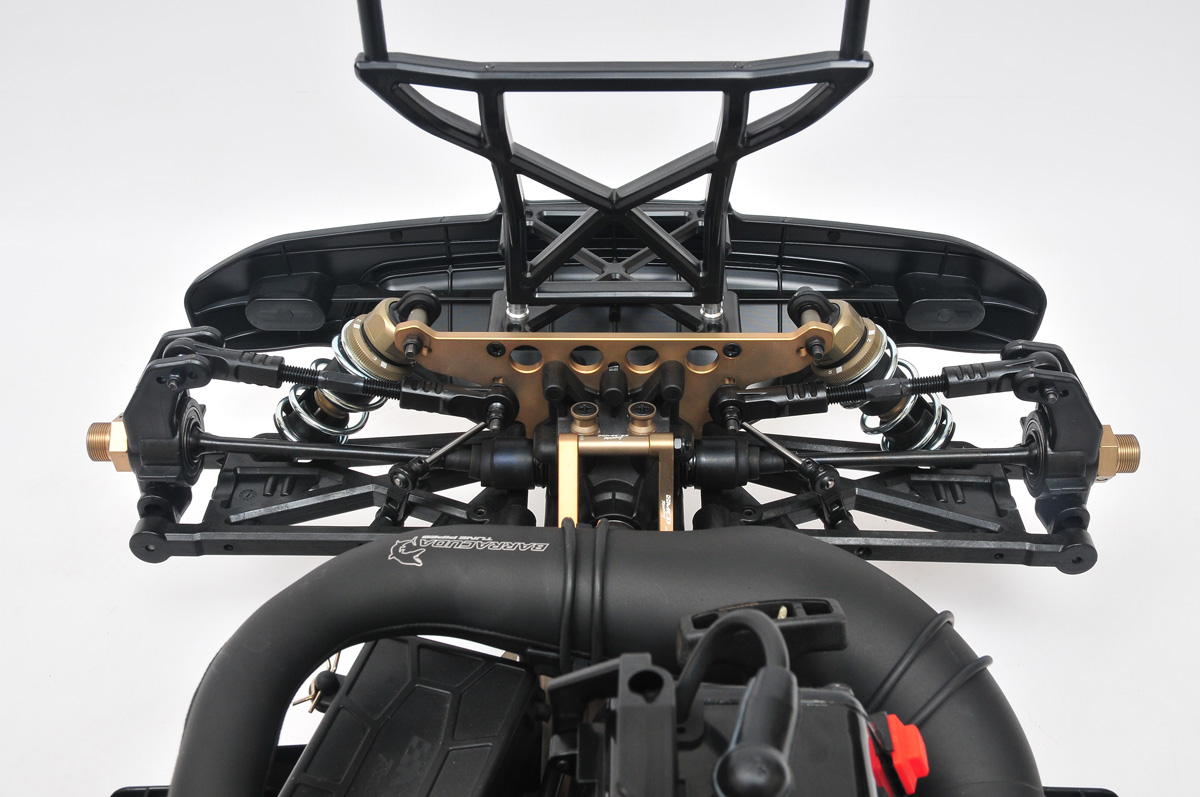

- 5mm light-weight 7075 air craft alloy front and rear towers
- Optimized multiple shock mounting holes

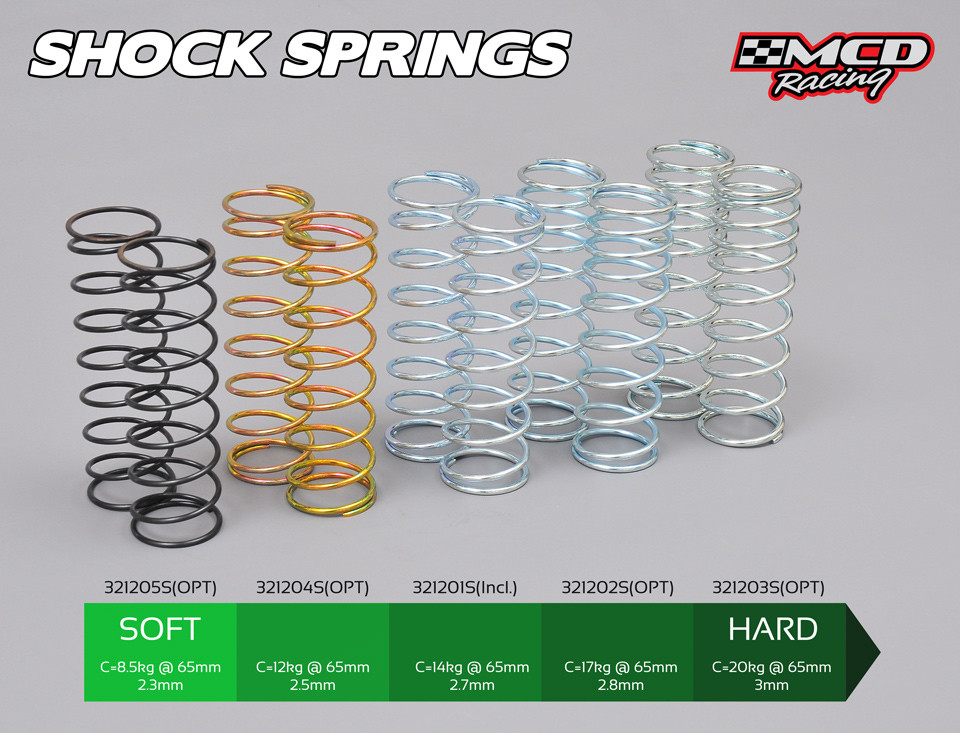

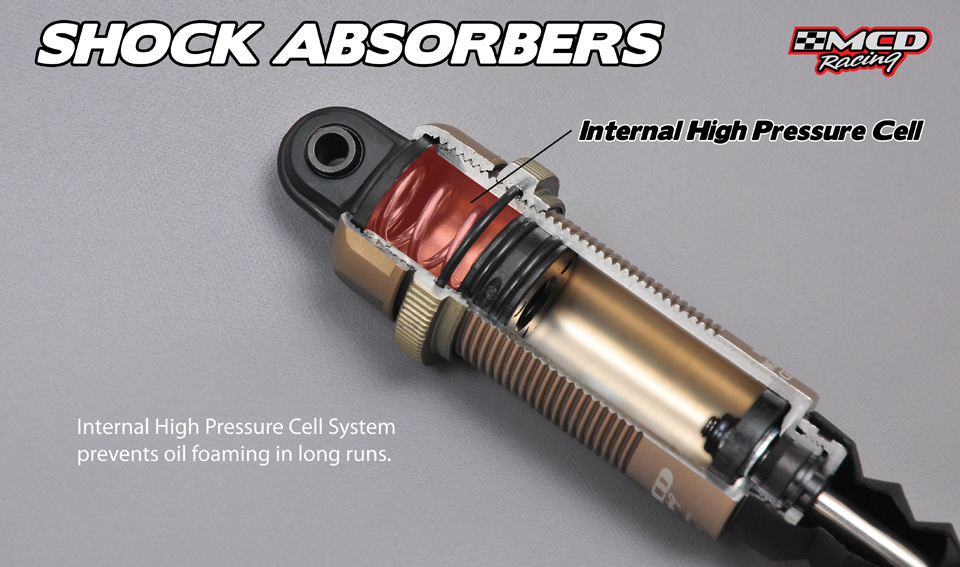

- Coil-over extended alloy shock absorbers with High Pressurized Cell™ System
- Ultra hardened steel transmission gears

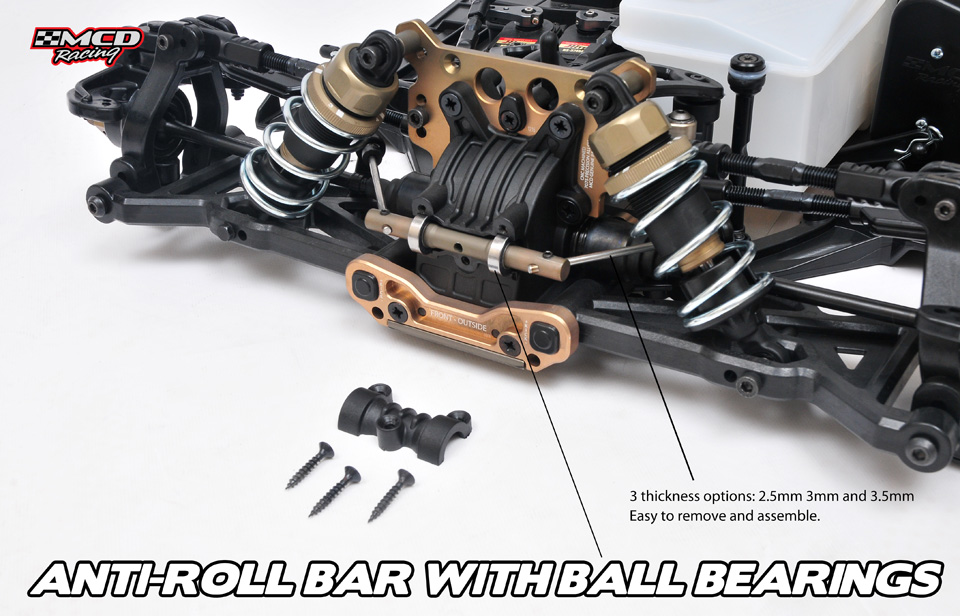

- Double ball bearing anti-roll bars

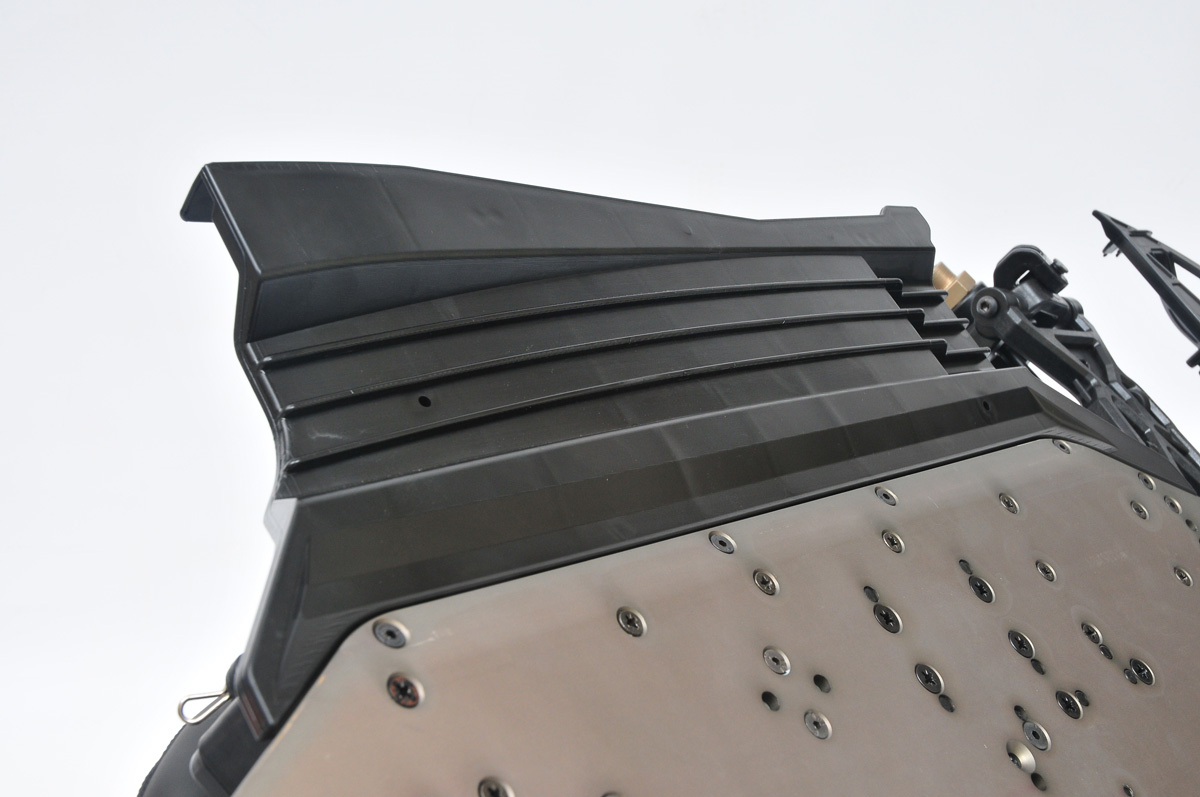

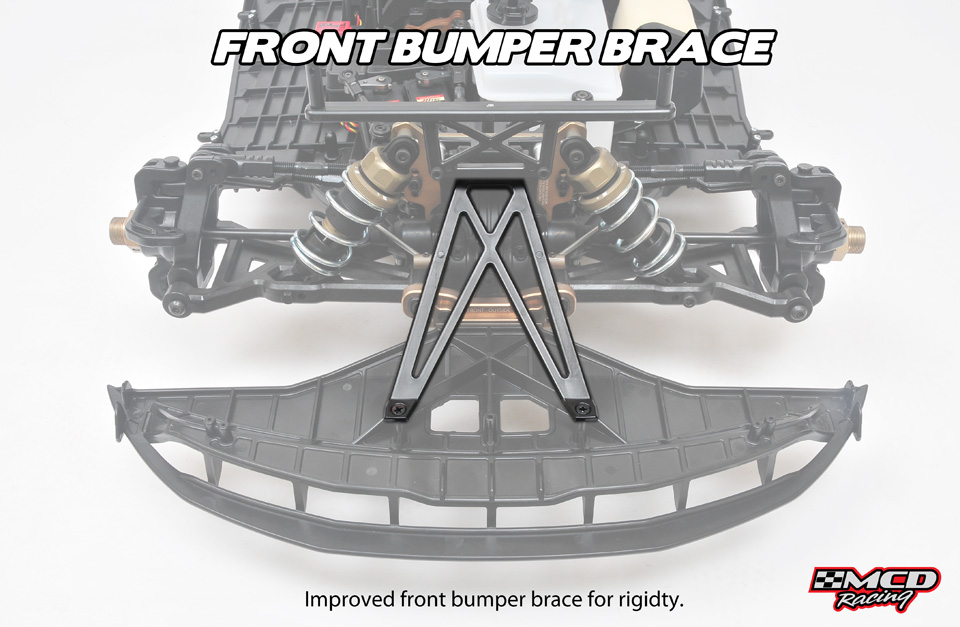

- No-Stress-Effect polyamide front bumper and rear diffuser
- Ultra durable steel ball cup-joints
- Super-Cooling V5 air ventilation system

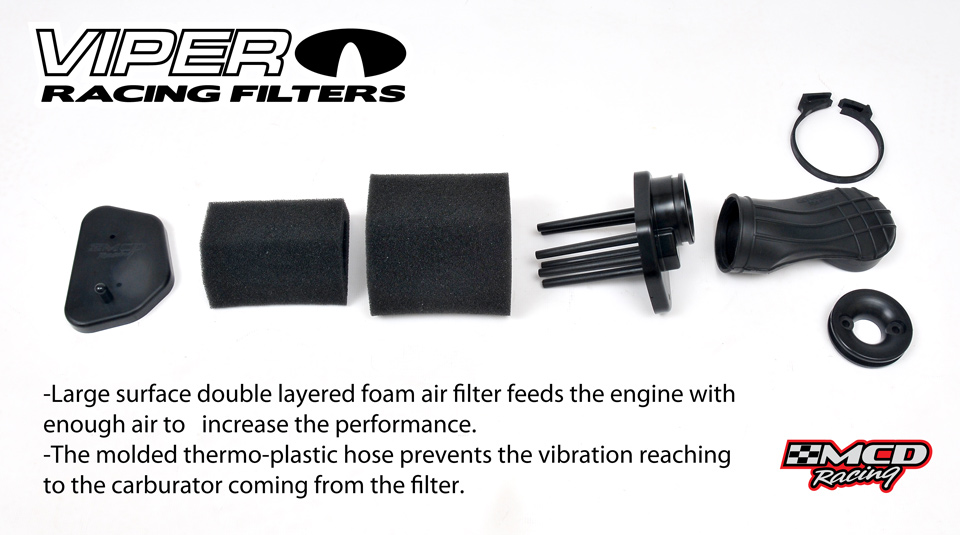

- Viper Racing Air Filters with dual layer foam and thermoplastic hose

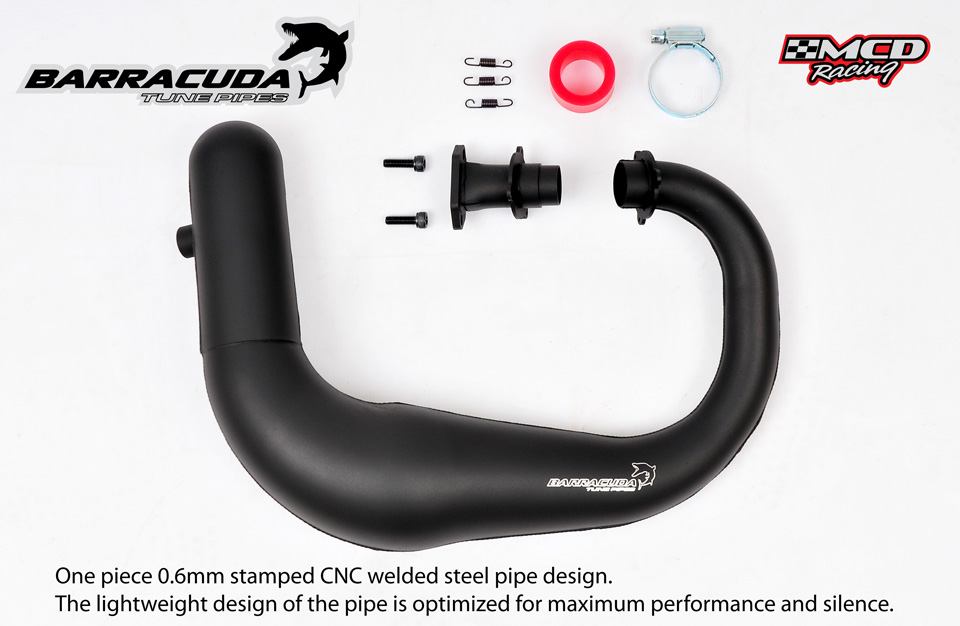

- Barracuda G performance exhaust (Optional)
- Adjustable CG
- Adjustable weight distribution

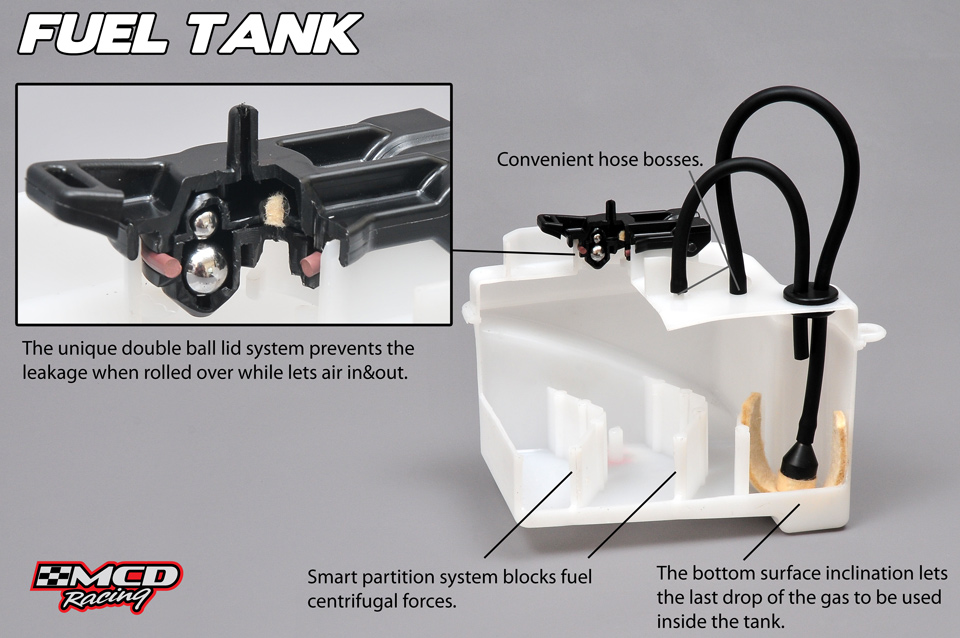

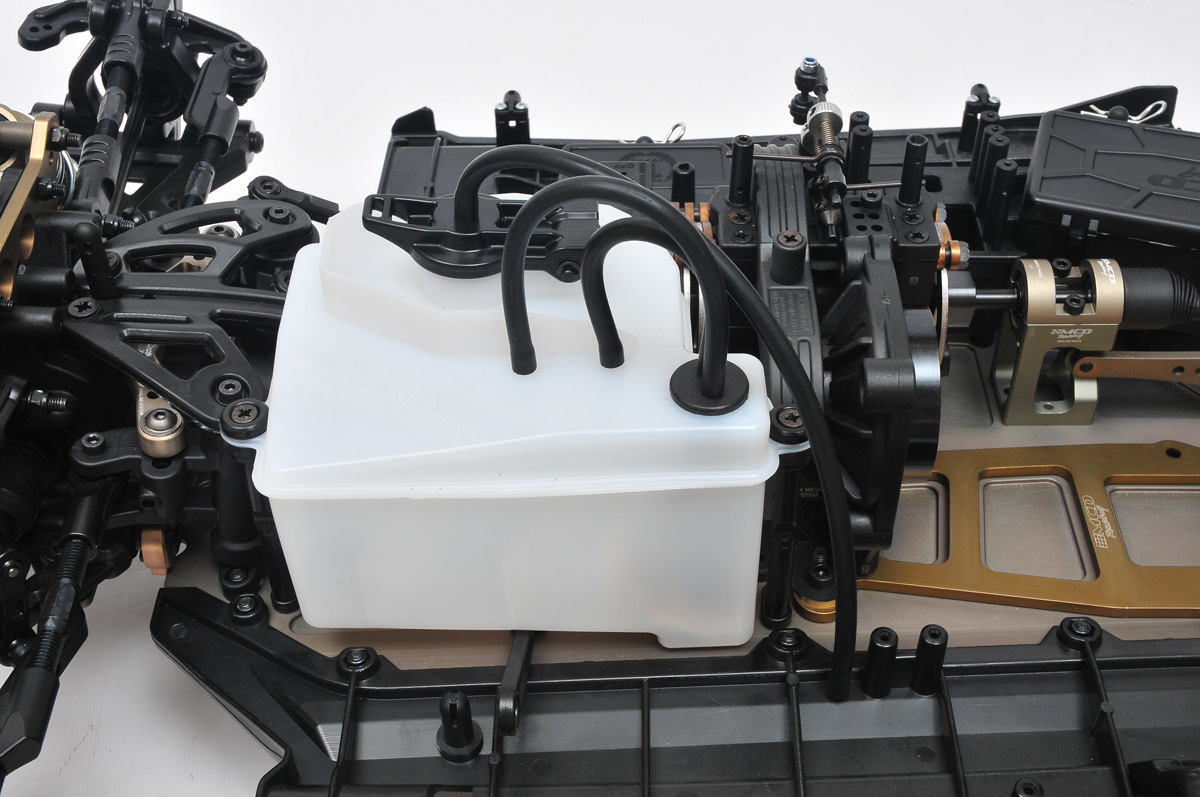

- Molded fuel tank with shake absorbing separators

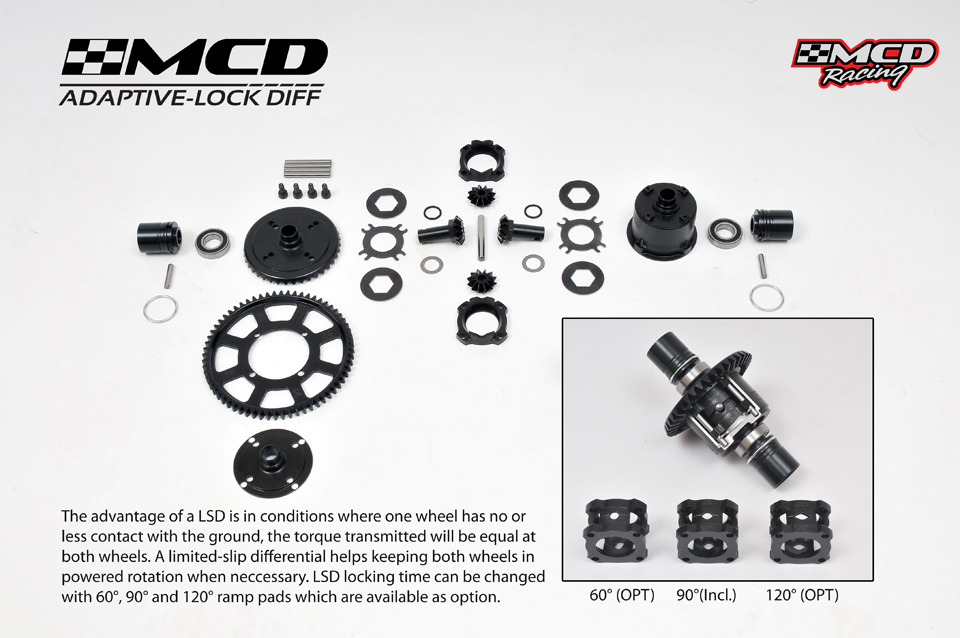

- Front/rear/central 90˚ ramp self locking diffs

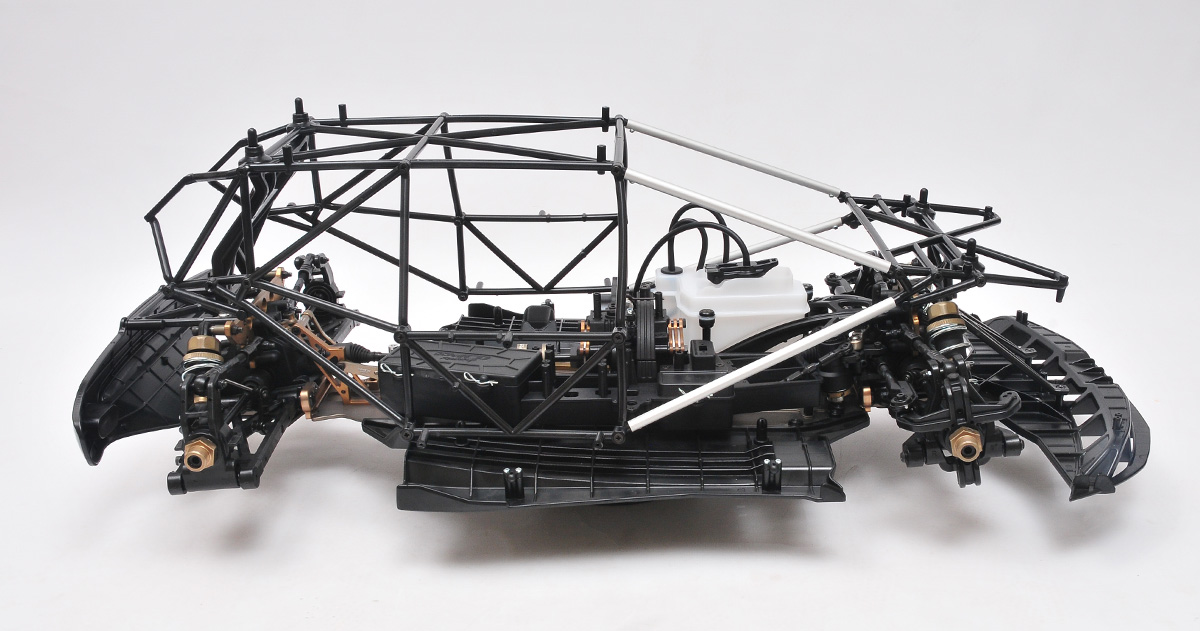

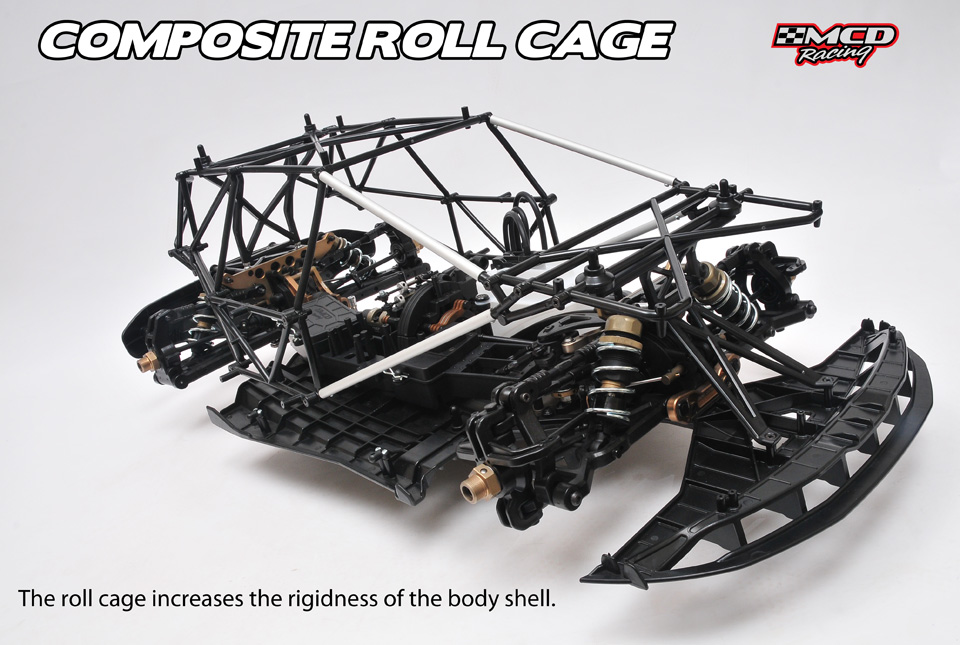

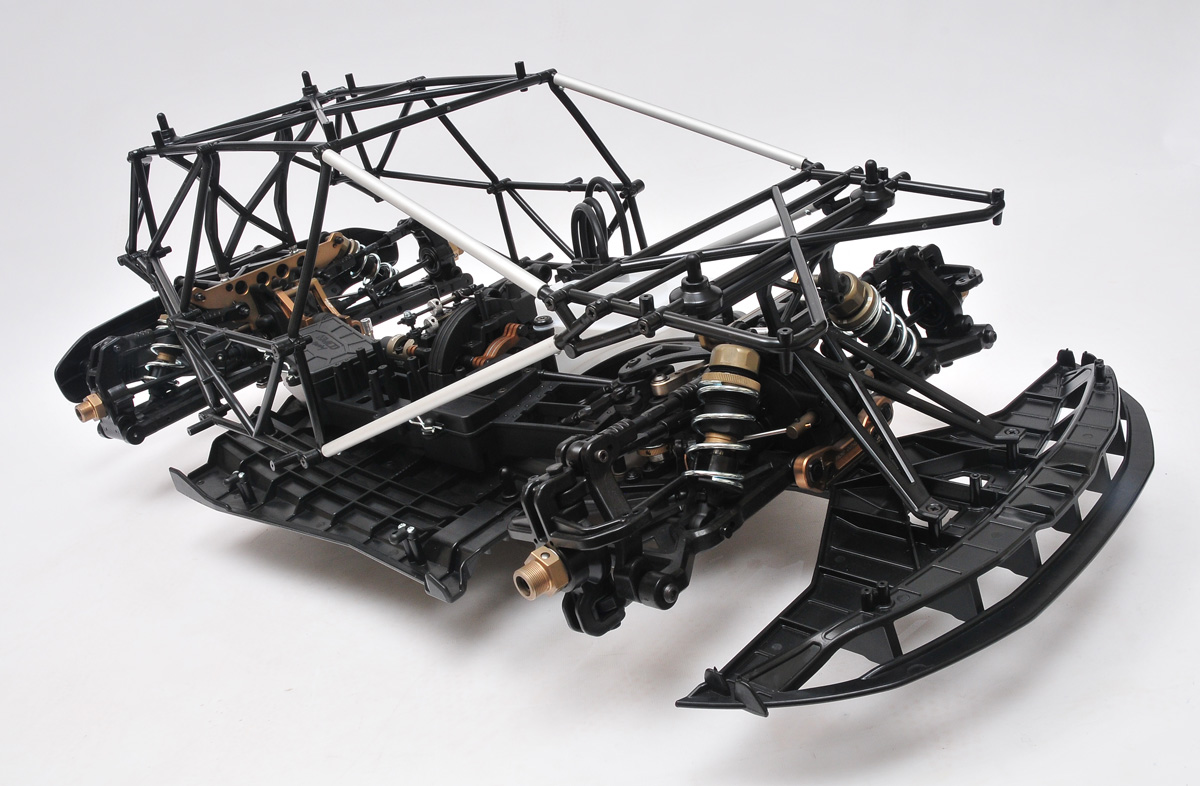

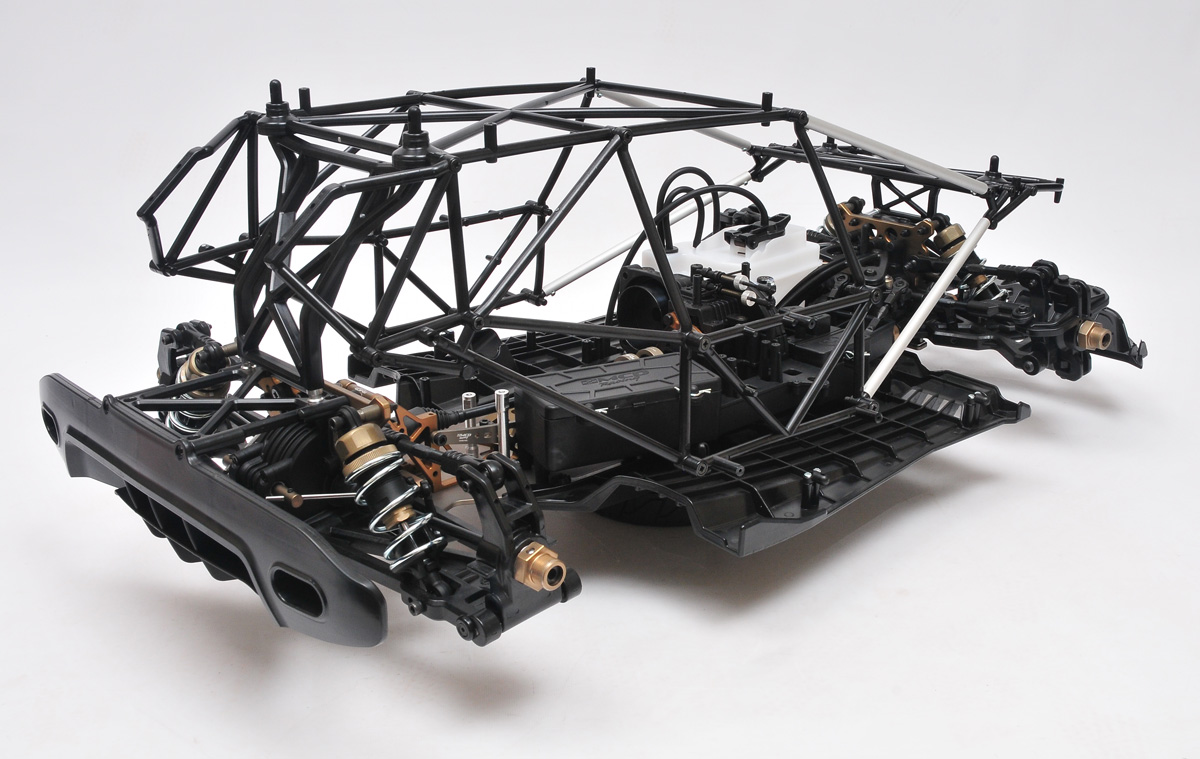

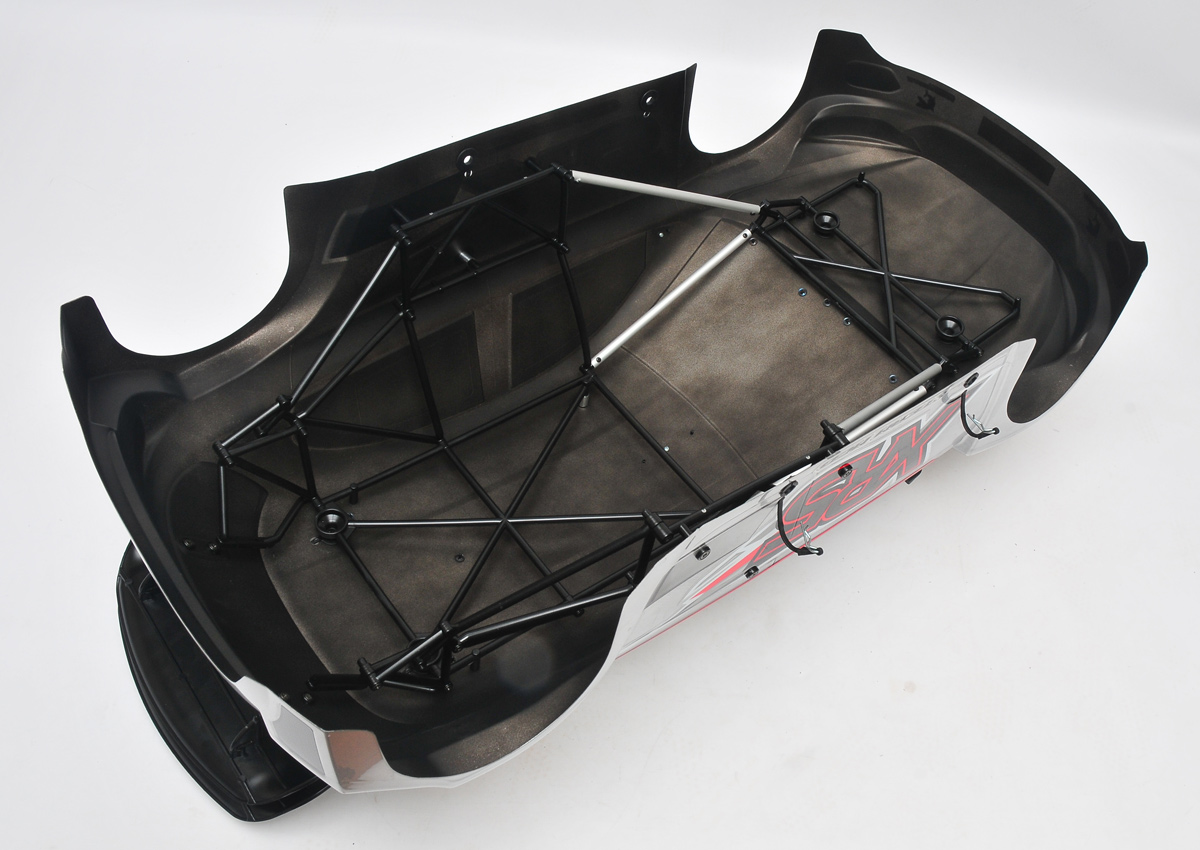

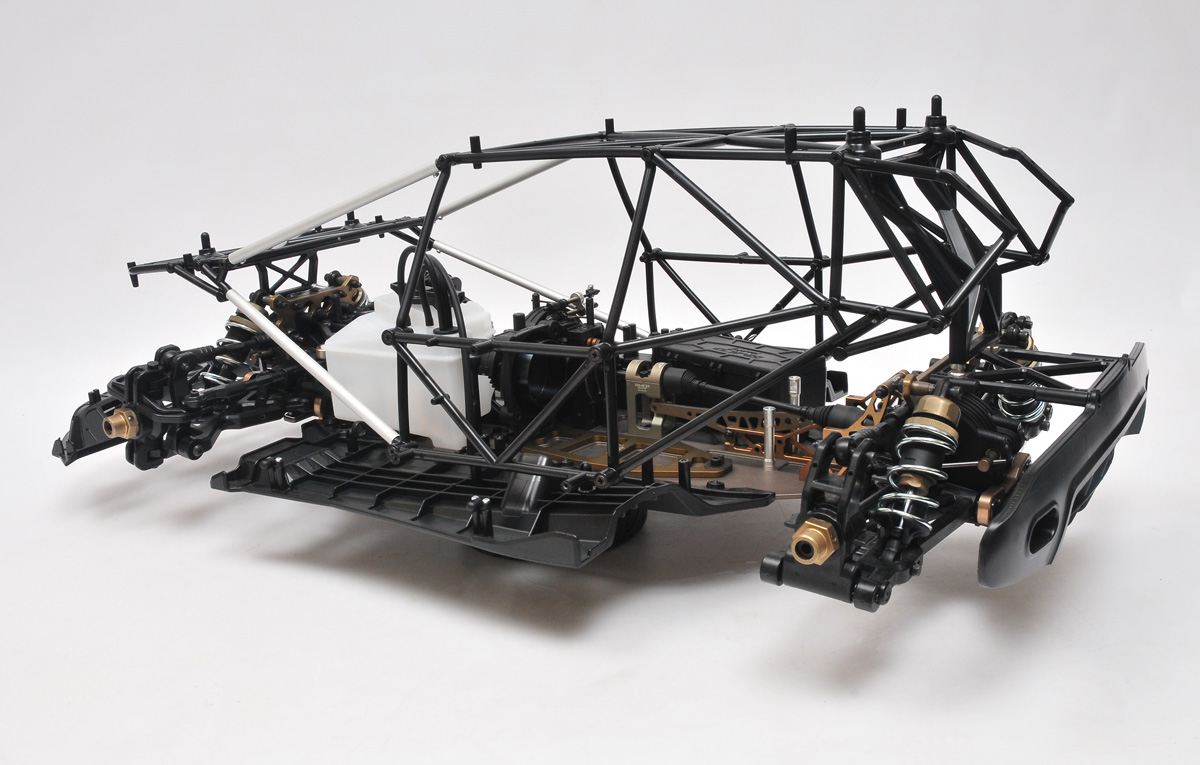

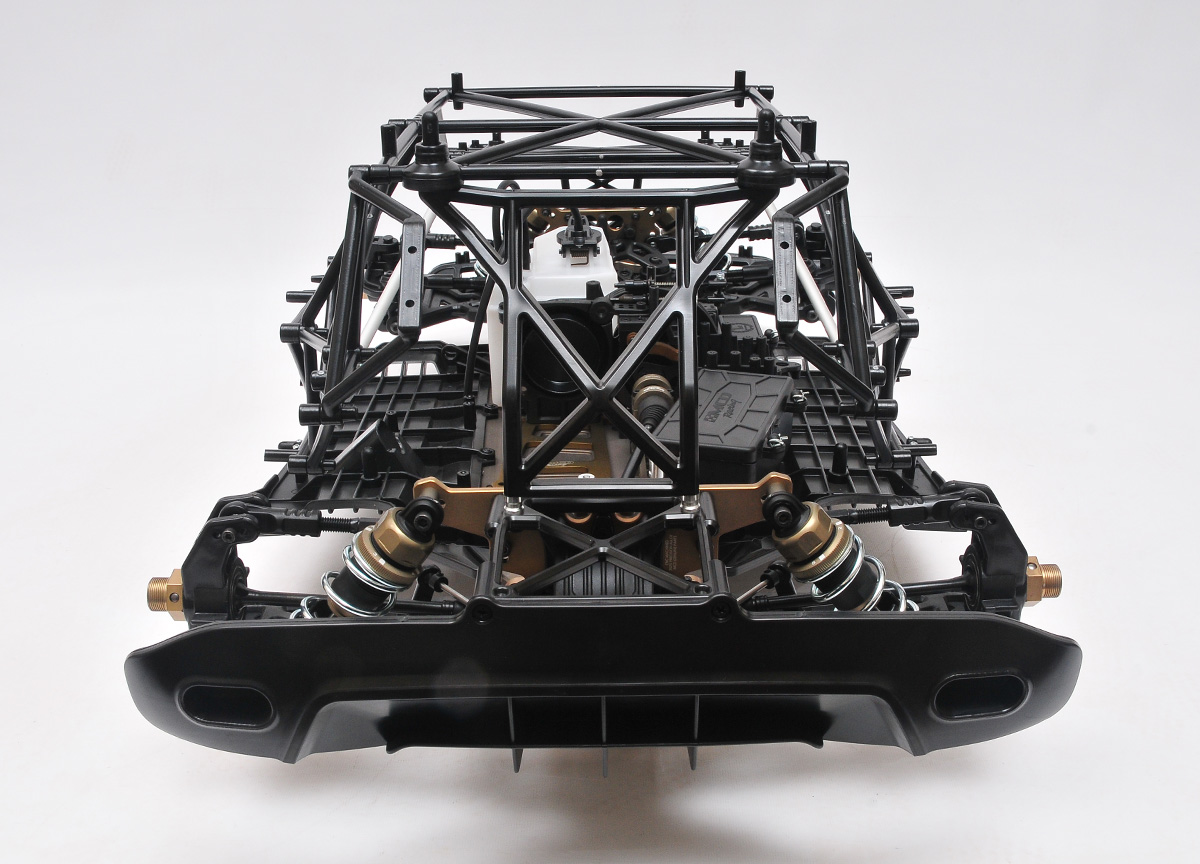

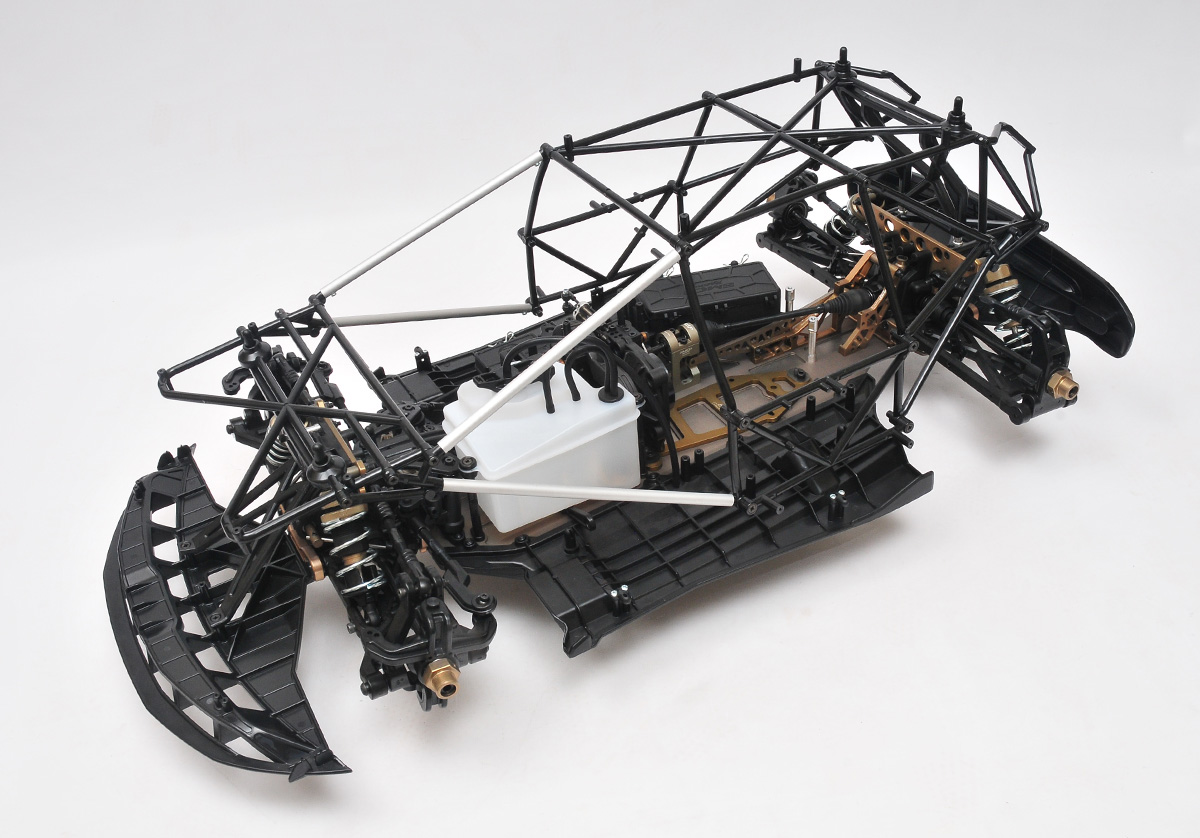

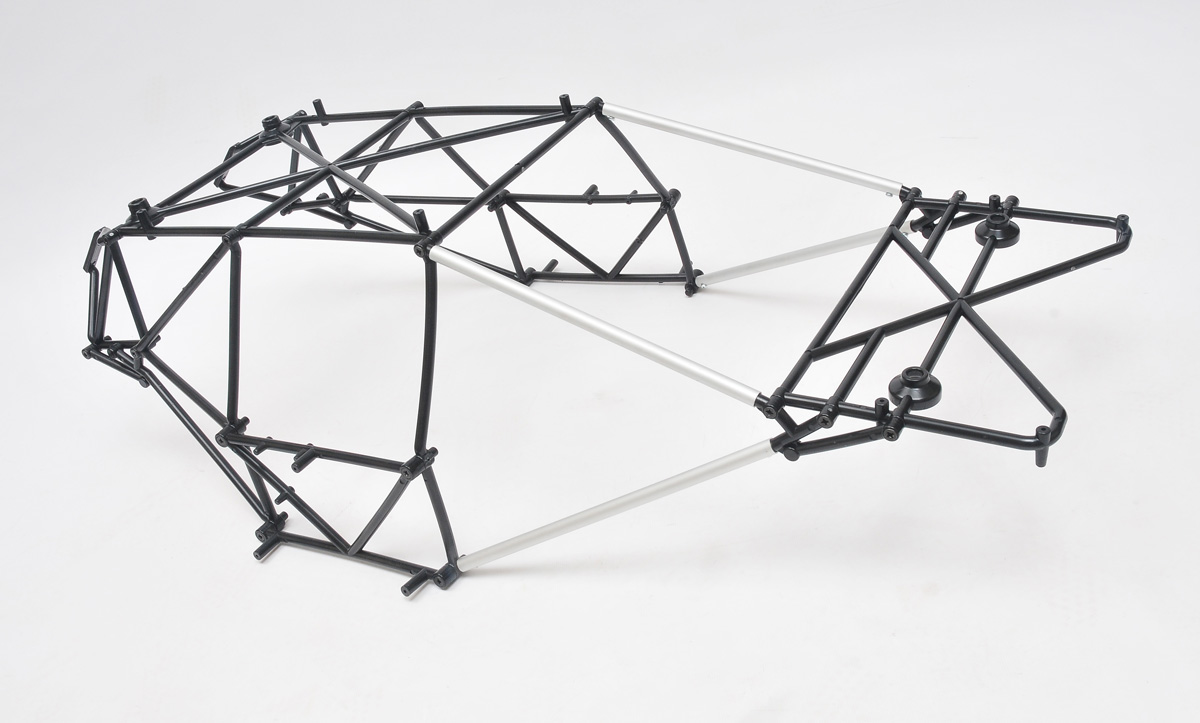

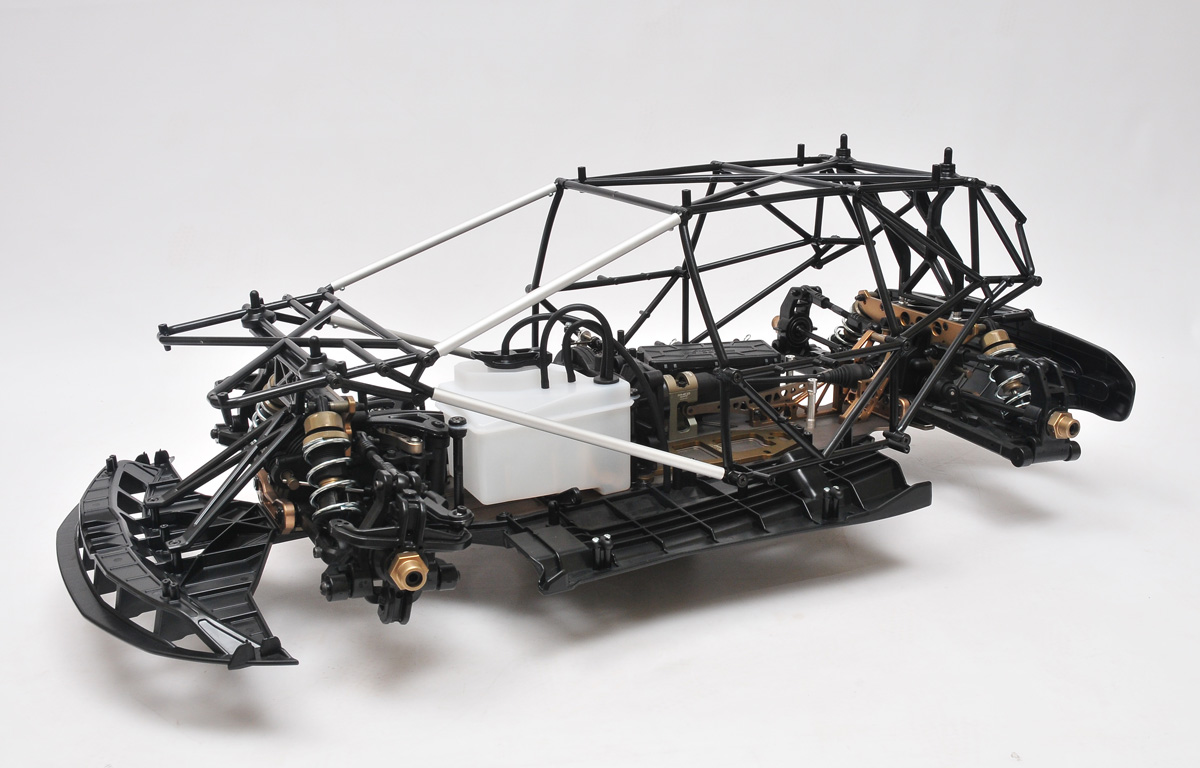

- Ultra rigid roll cage
- Fully composite body accessories
- Drive and shock shaft boot
|
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
 |
| Length |
: 1010 mm |
| Width |
: 480 mm |
| Overall height |
: 325 mm |
| Ground clearance |
: 25-42 mm |
| Weight |
: 14.8kg |
| Wheelbase |

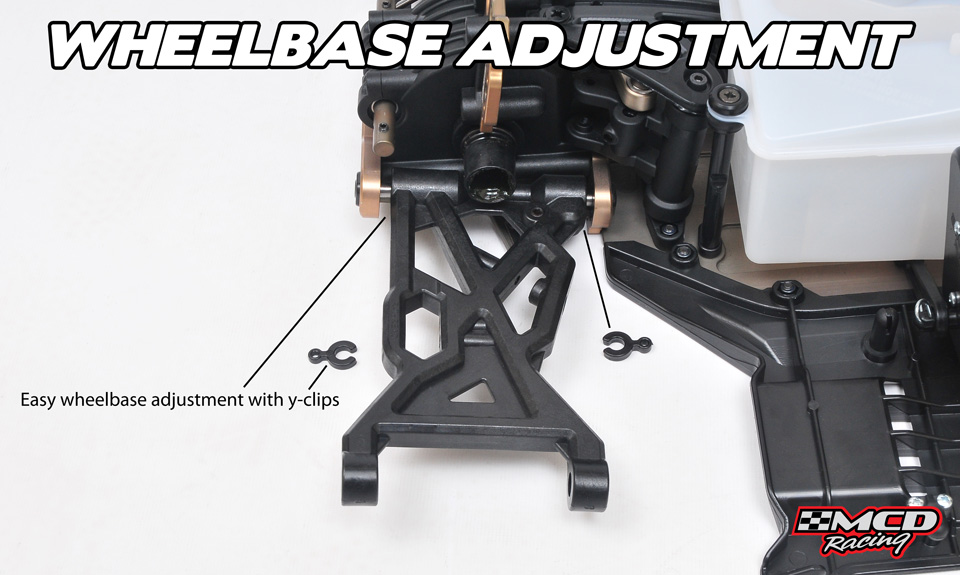

: 610-620 mm (adjustable) |
| Trackwidth |
: 410mm
|
| Chassis material |
: 7075 Anodize Alloy (4mm) |
| Suspension |
: Non-parallel non-line independent |
| Caster angle |

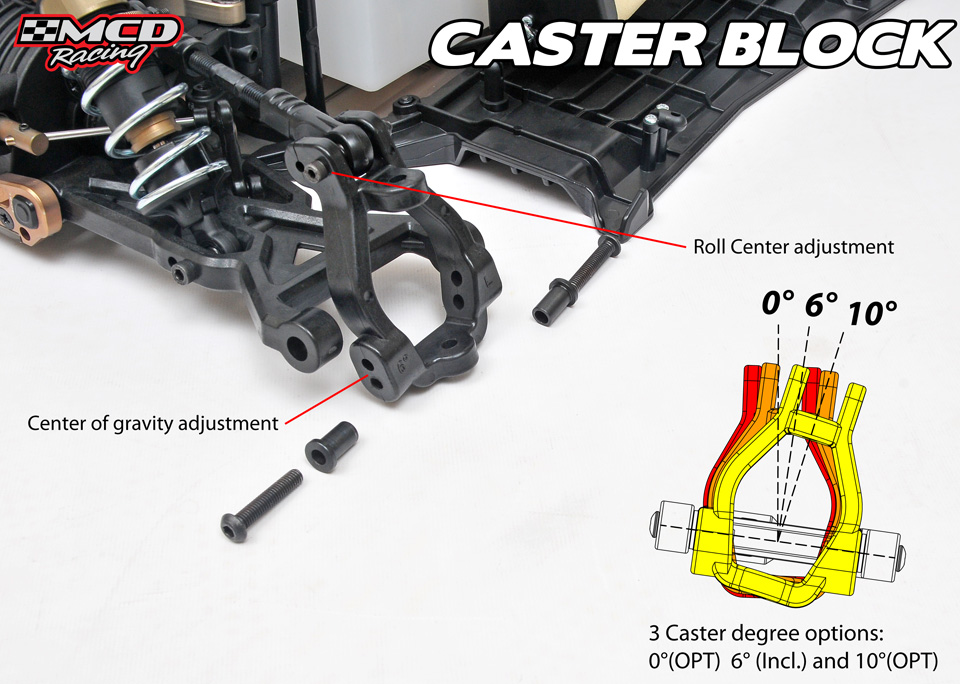

: 14°(6° - 16°(total caster); adjustable) |
| Camber angle |
: Adjustable |

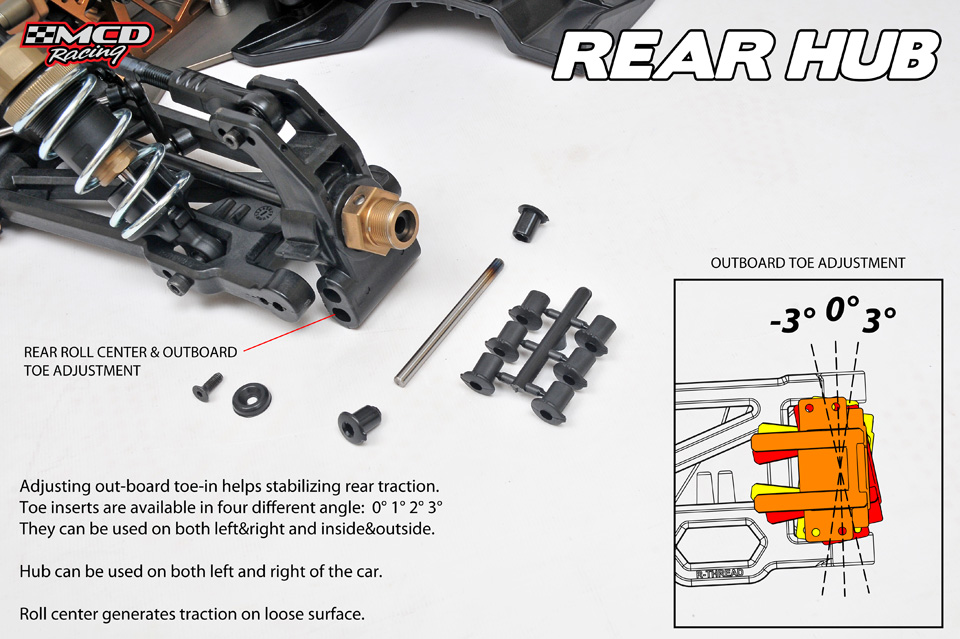

| Toe angle |
: In-board and out-board adjustable |

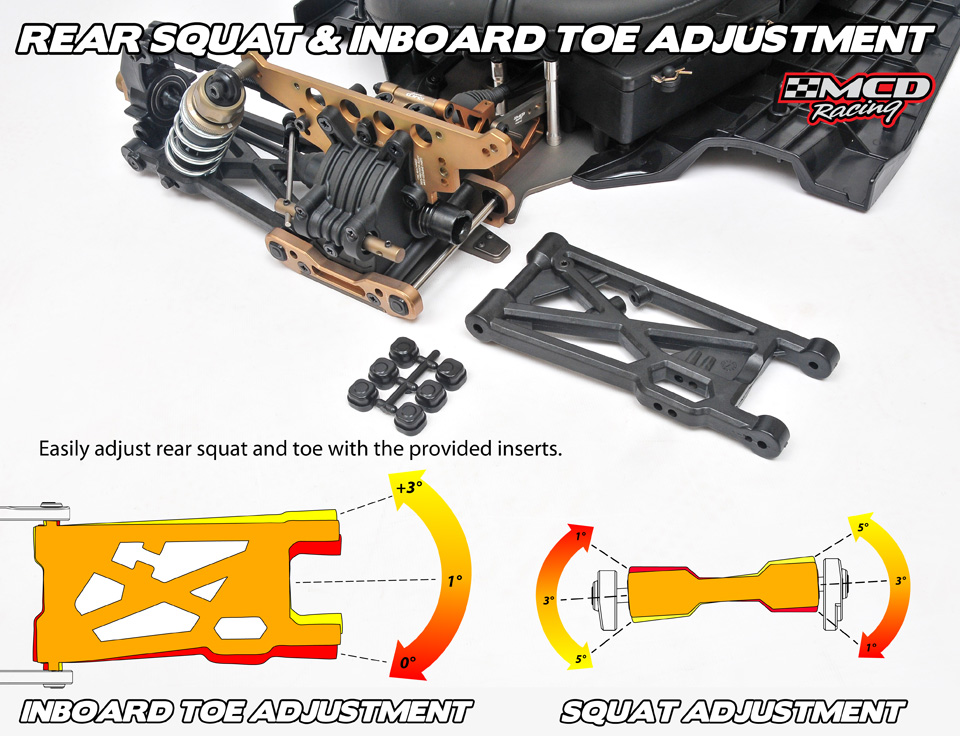

| Anti-squat |
: 3°(adjustable) |
| Rear-squat |
: 5° |
| Kick-up |
: 8°-10°(adjustable) |
| Shock absorber |
: Coil-over Oil-filled Internal High Pressure Cell |
| Transmission |
: Full-Time 4WD Tri-LSD Diff Shaft driven |
| Gear ratio |
: 7,88:1 (18 available 7,44:1 to 10,67) |

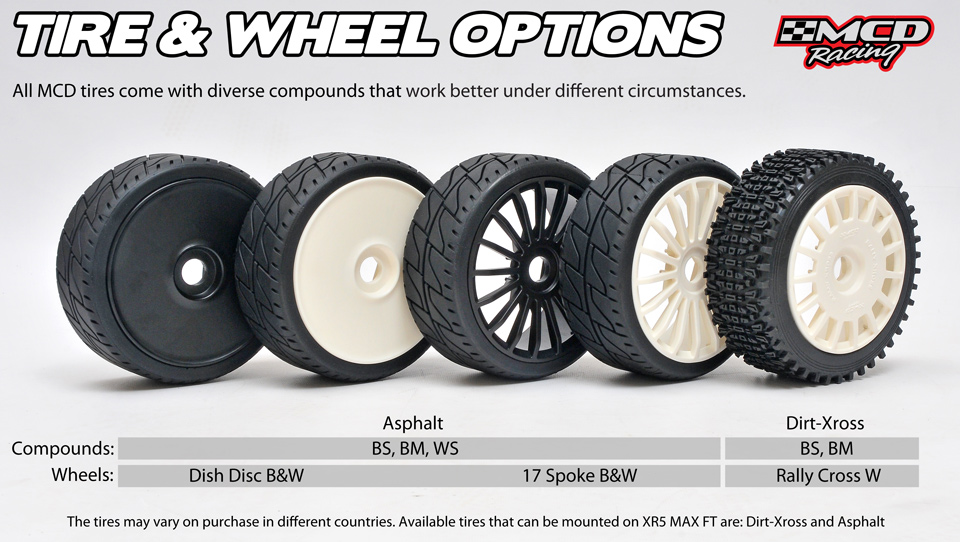

| Tyre size |
: 65 x 160 mm |
|
Order code: 00523003 XR5 Max Factory Team Spec
Recommended Retail Price: 1,749 EUR
|
|
 |










|
|

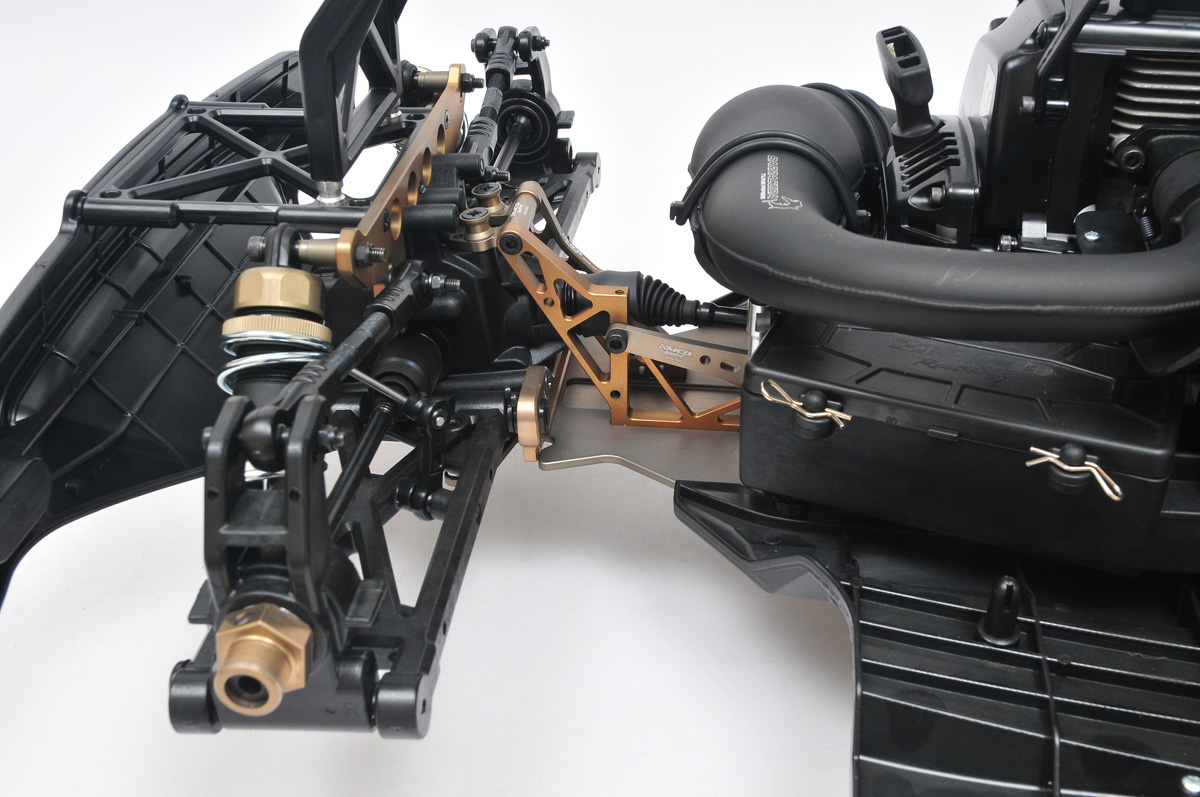

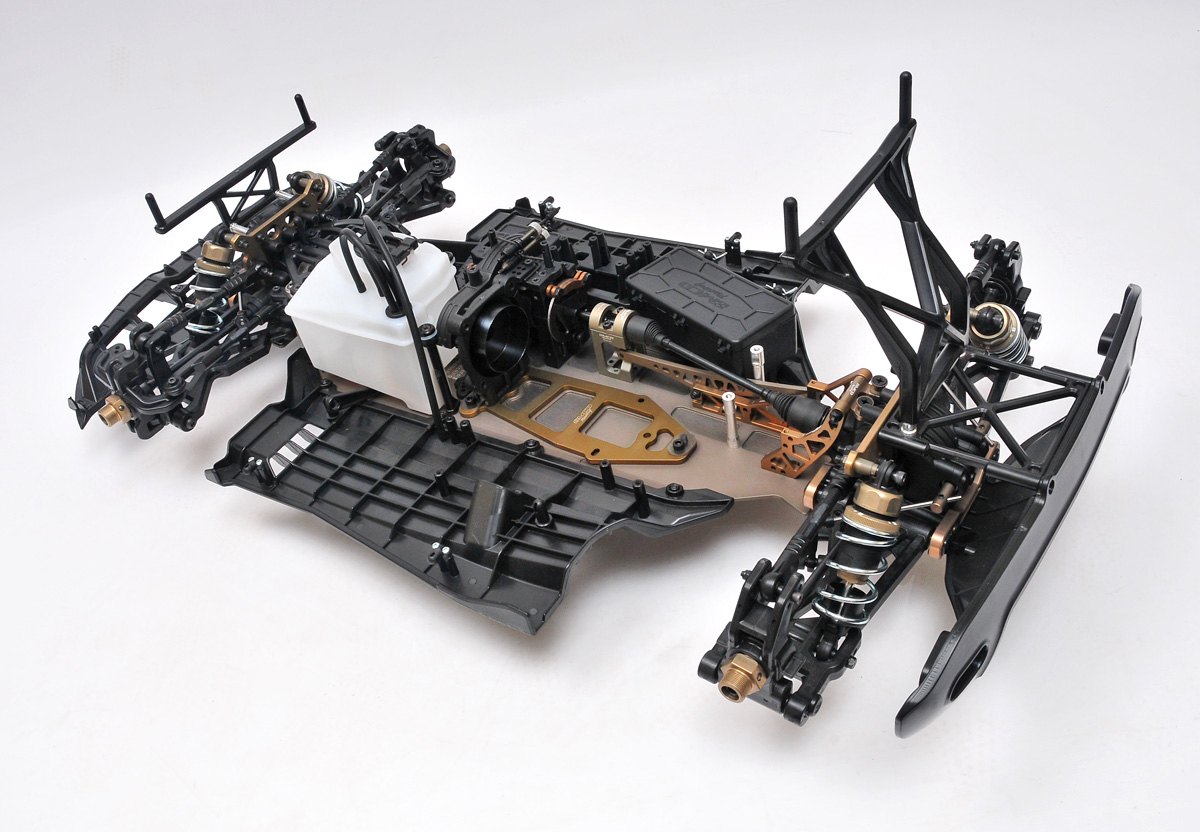

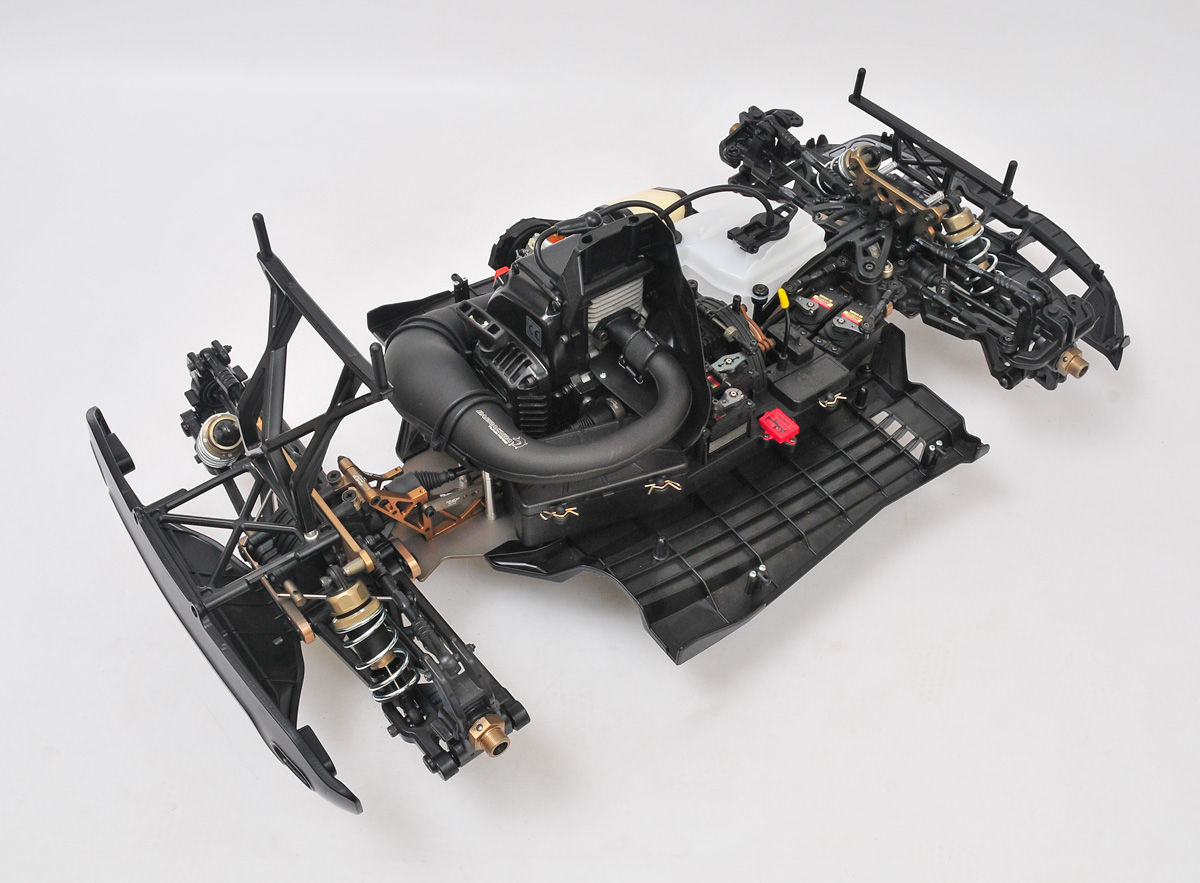

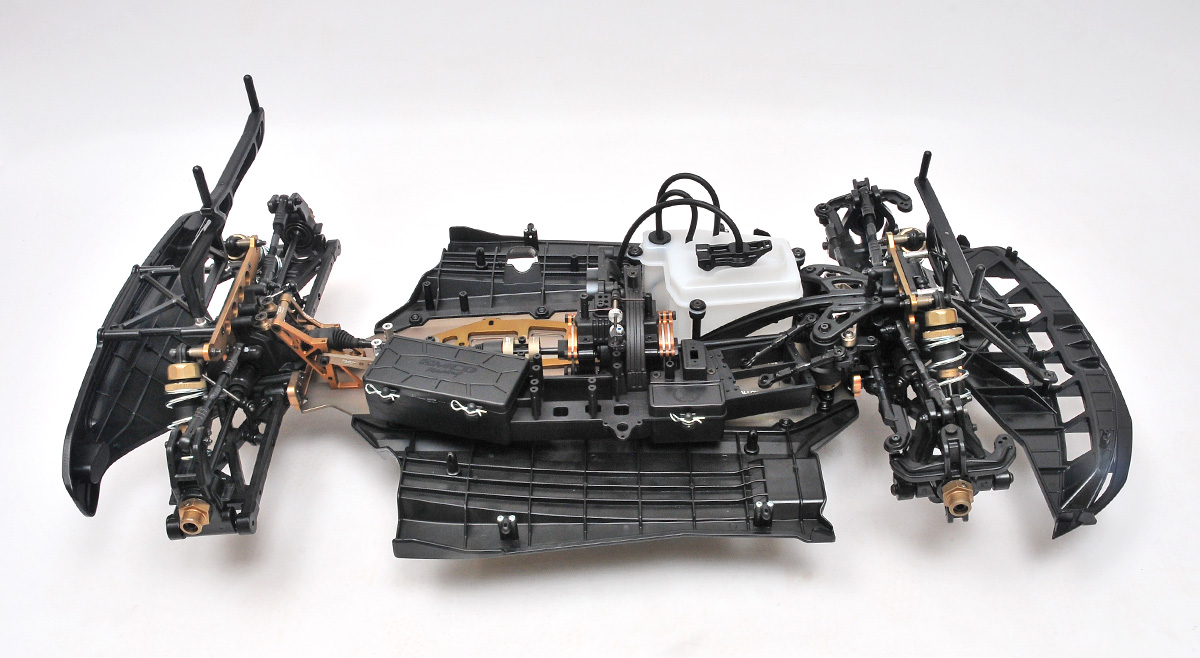

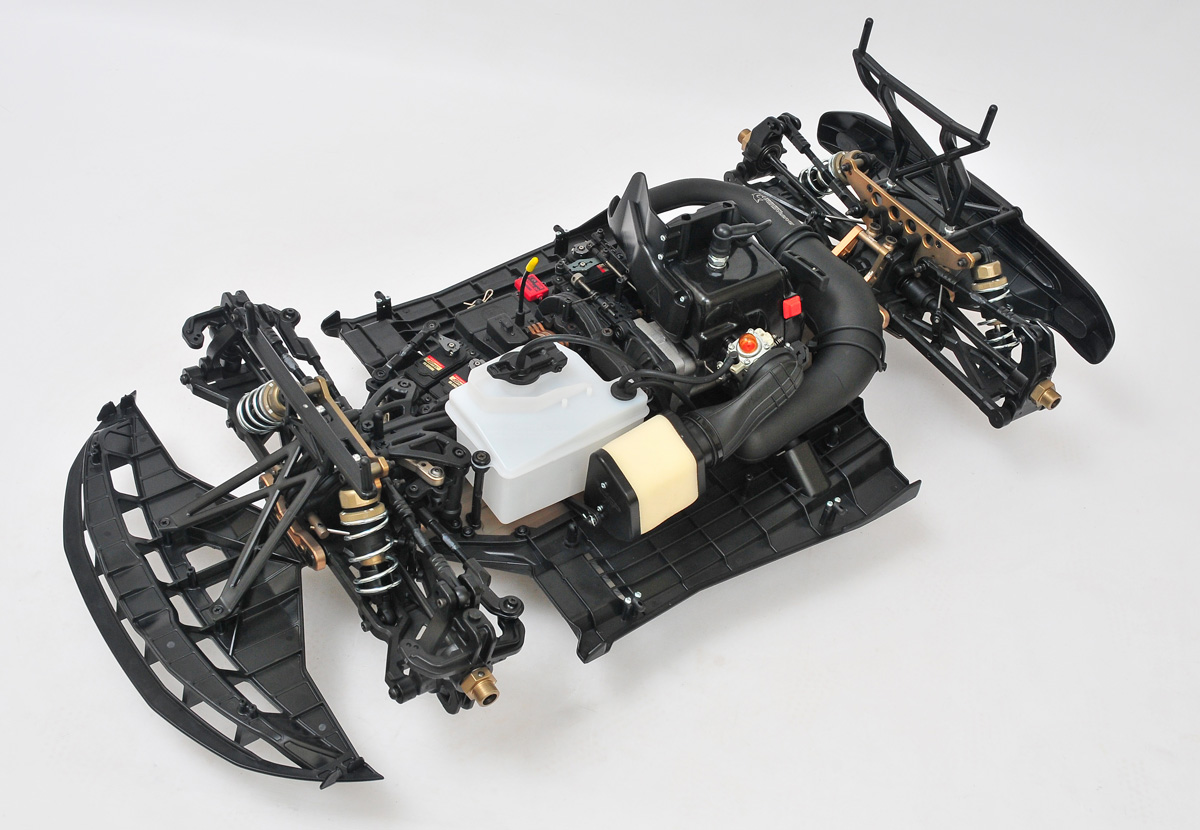

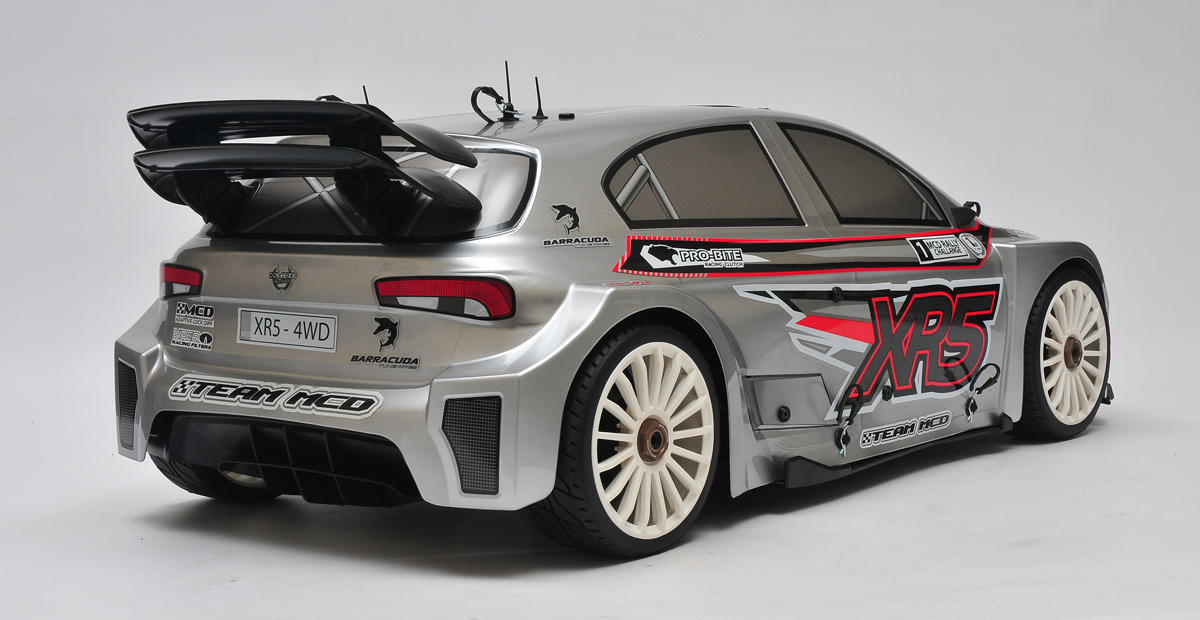

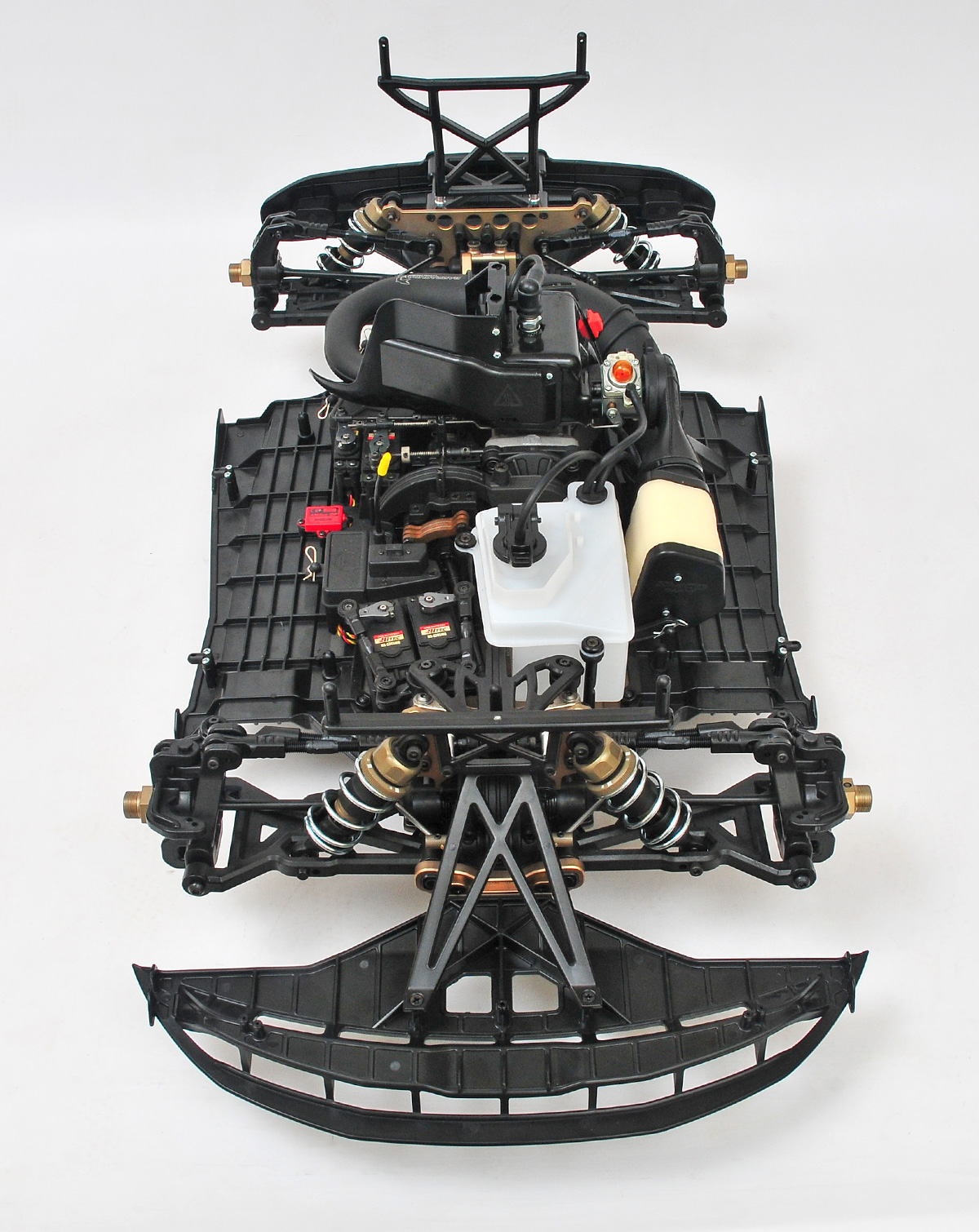

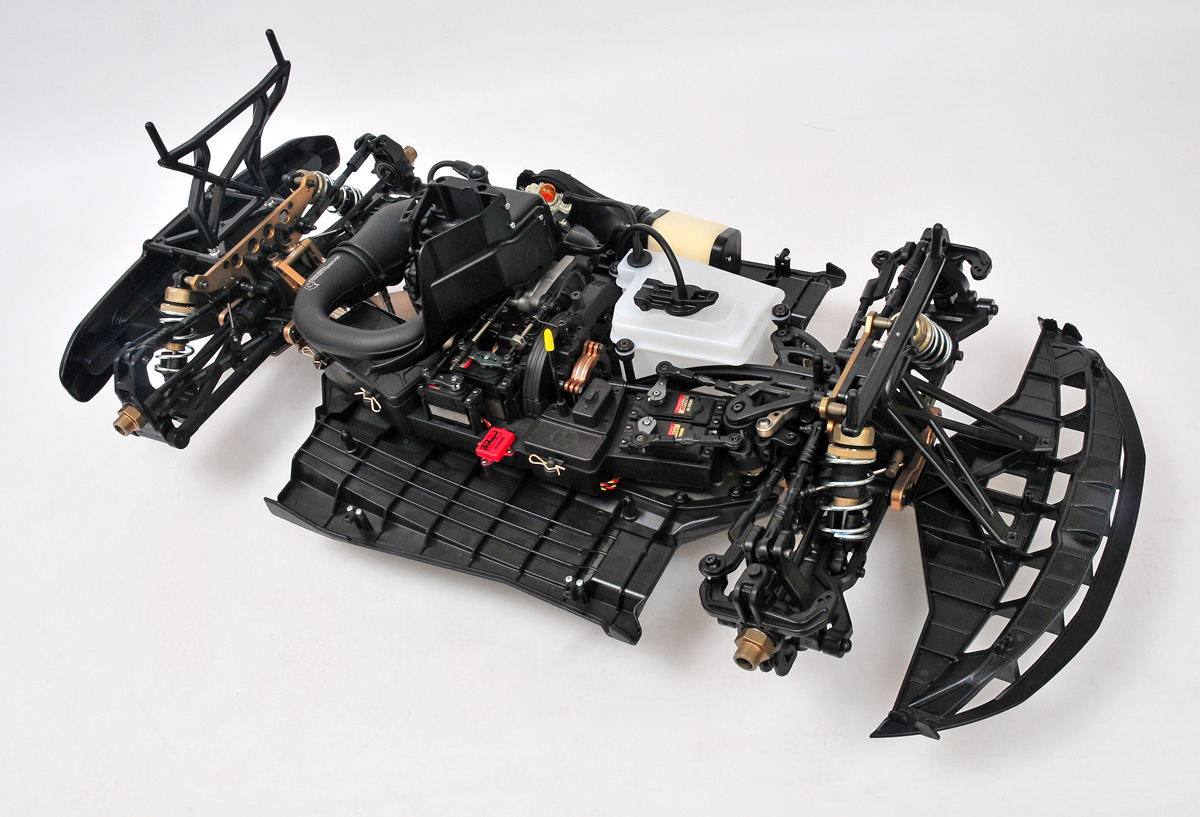

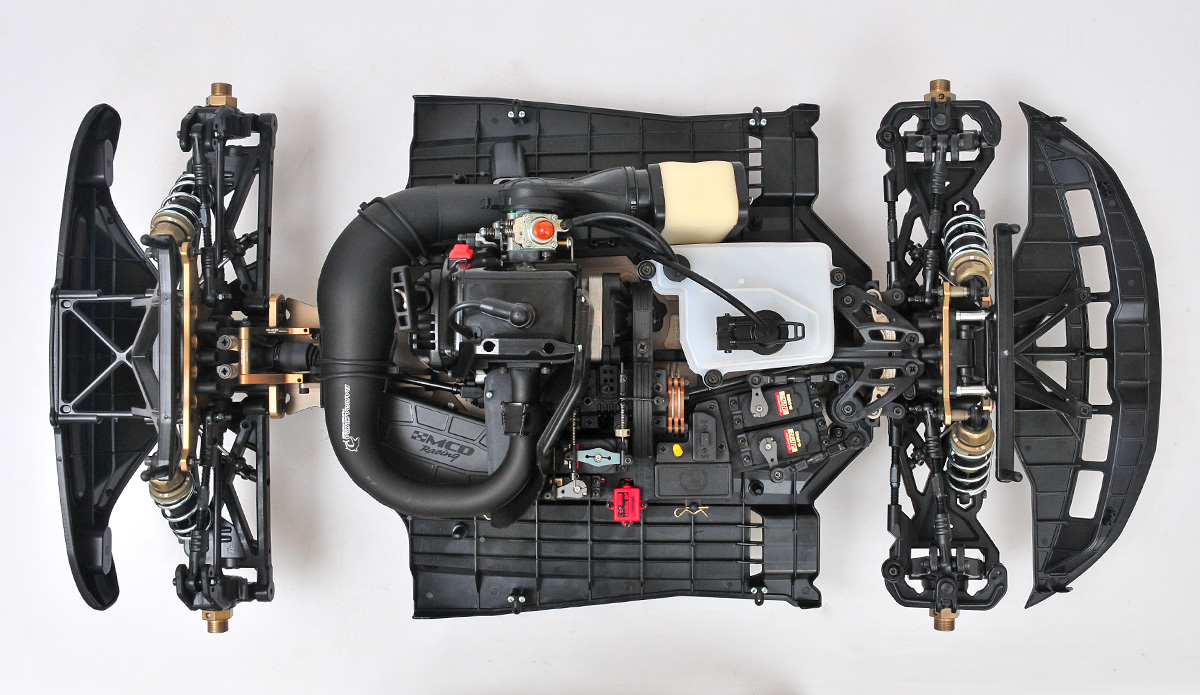

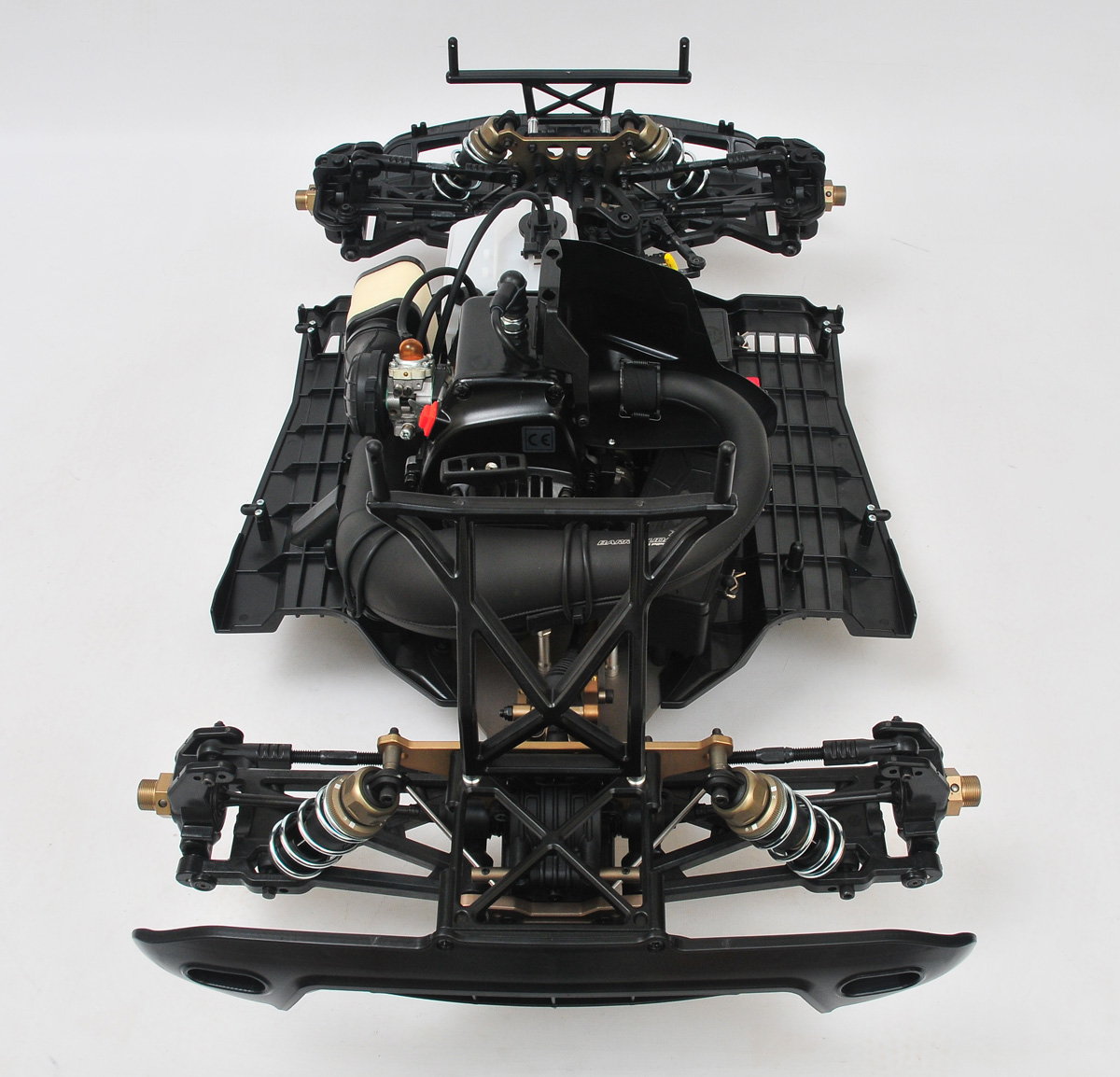

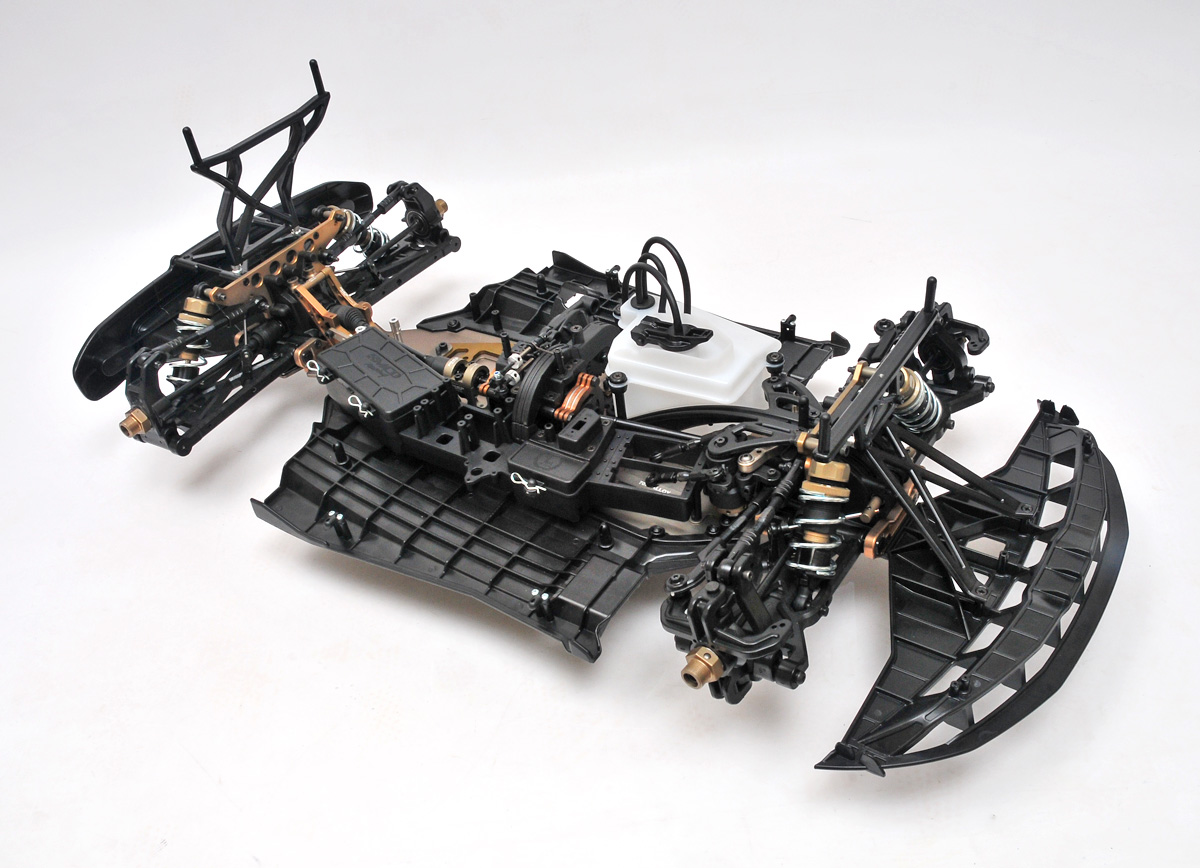

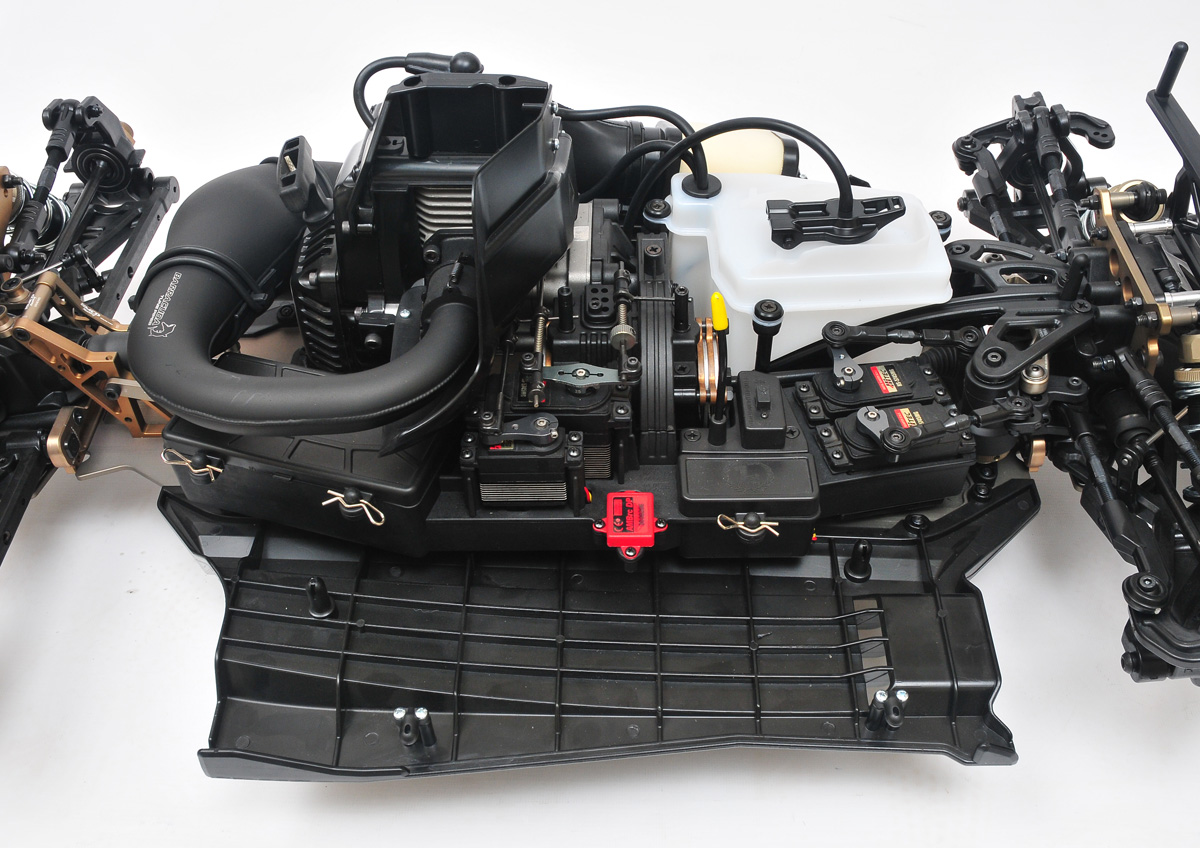

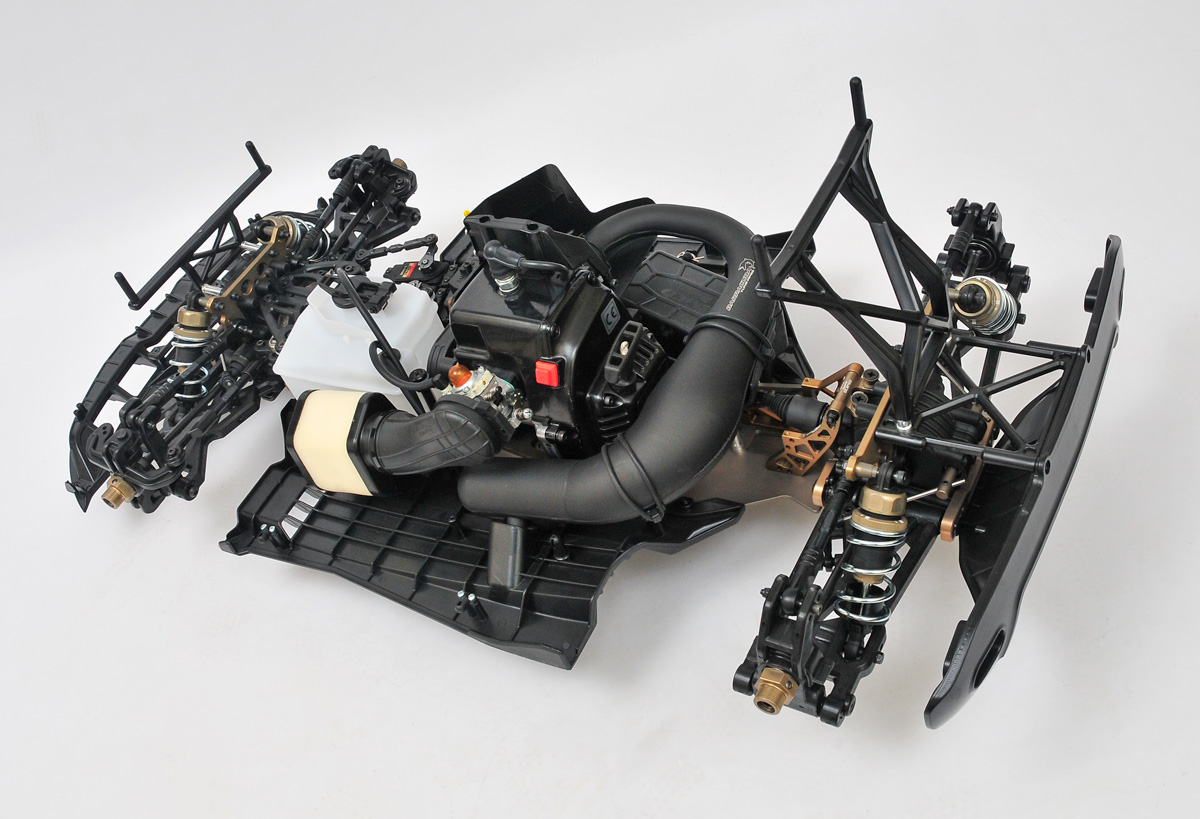

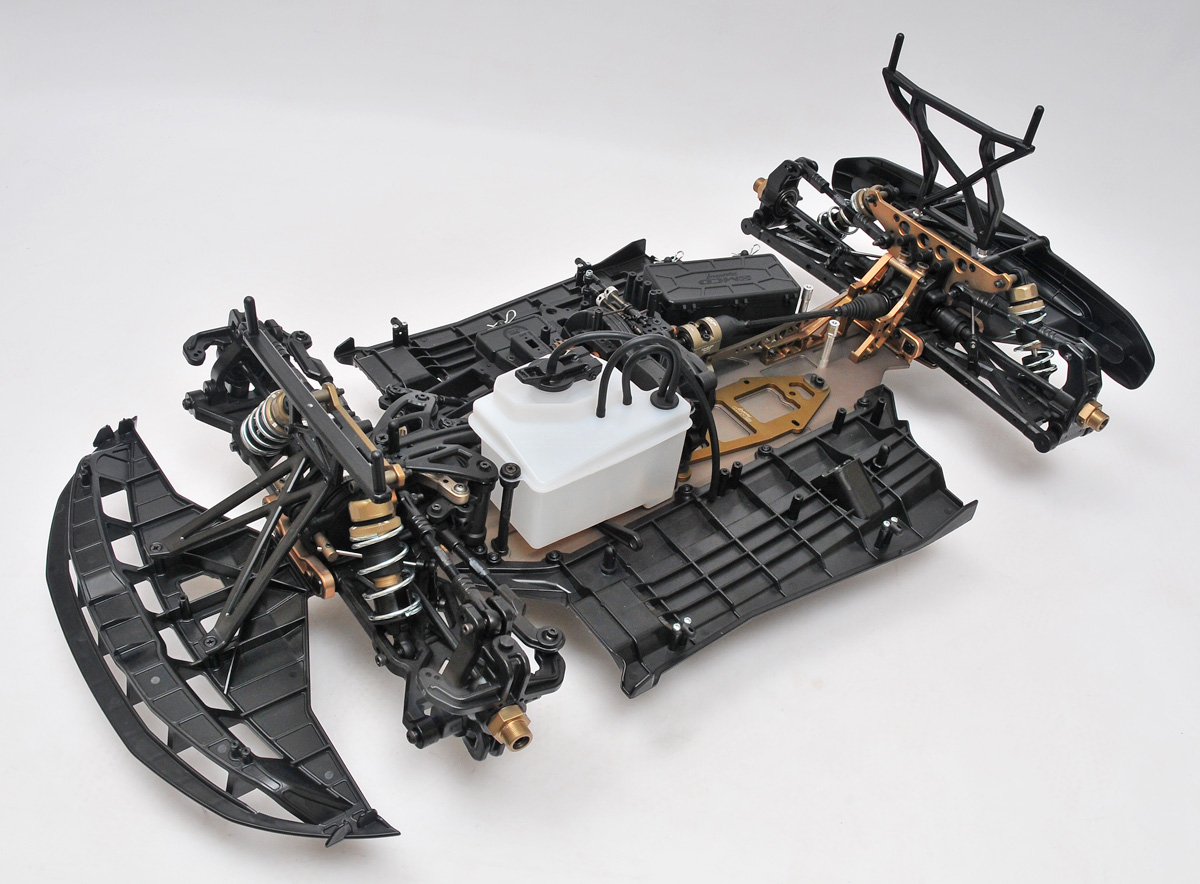

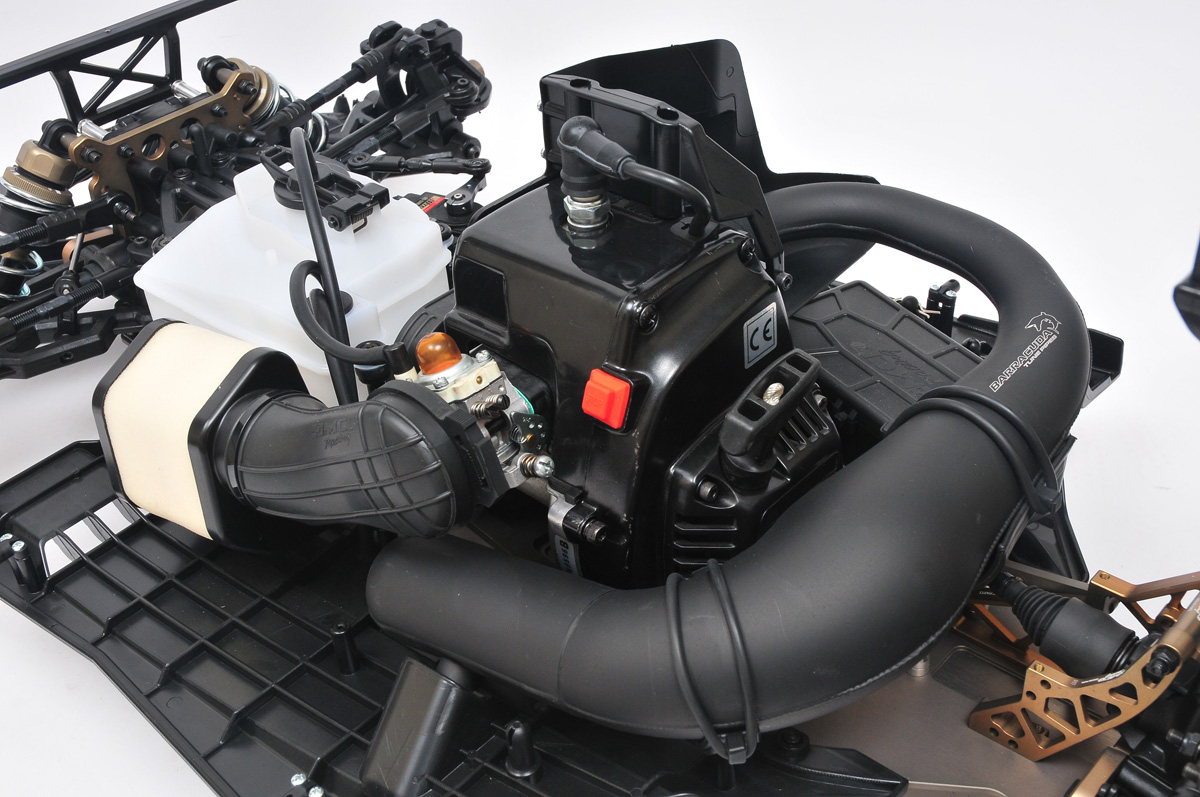

Some parts (engine, exhaust and radio gear) shown on the pictures are for photographing purposes only and not included in the car.
The Company reserves the right, at its discretion, to change and modify some properties of products such as colors of wheels, tire patterns, compound of tires without notification.
Required for operation (not included): Engine, 2 ch. Radio, 2x steering servos, 1 throttle/break servos

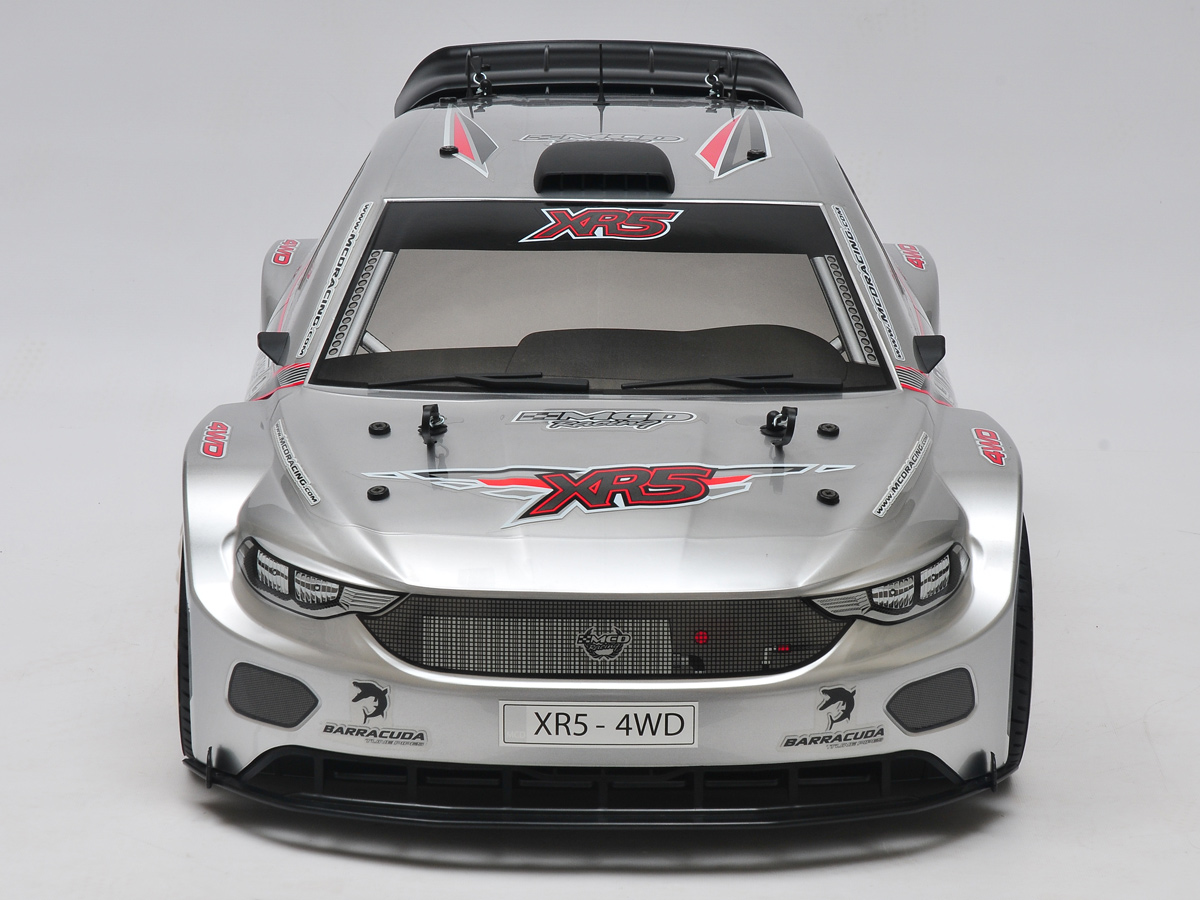

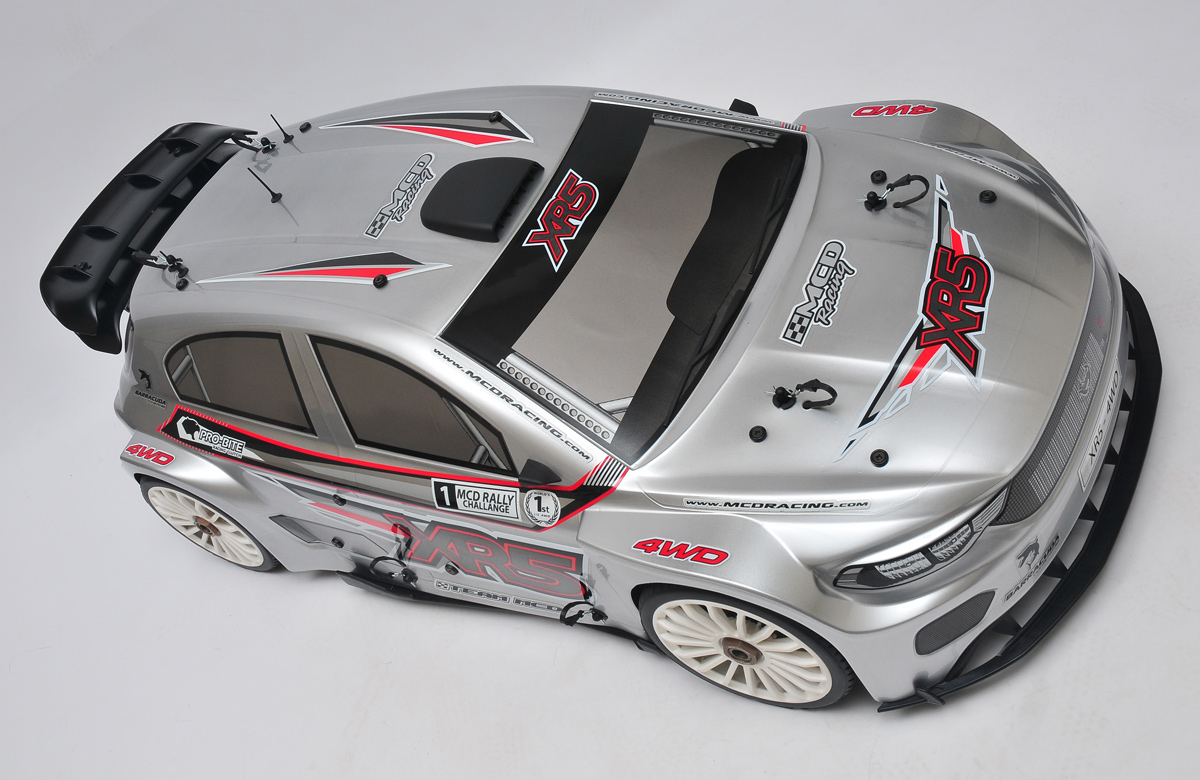

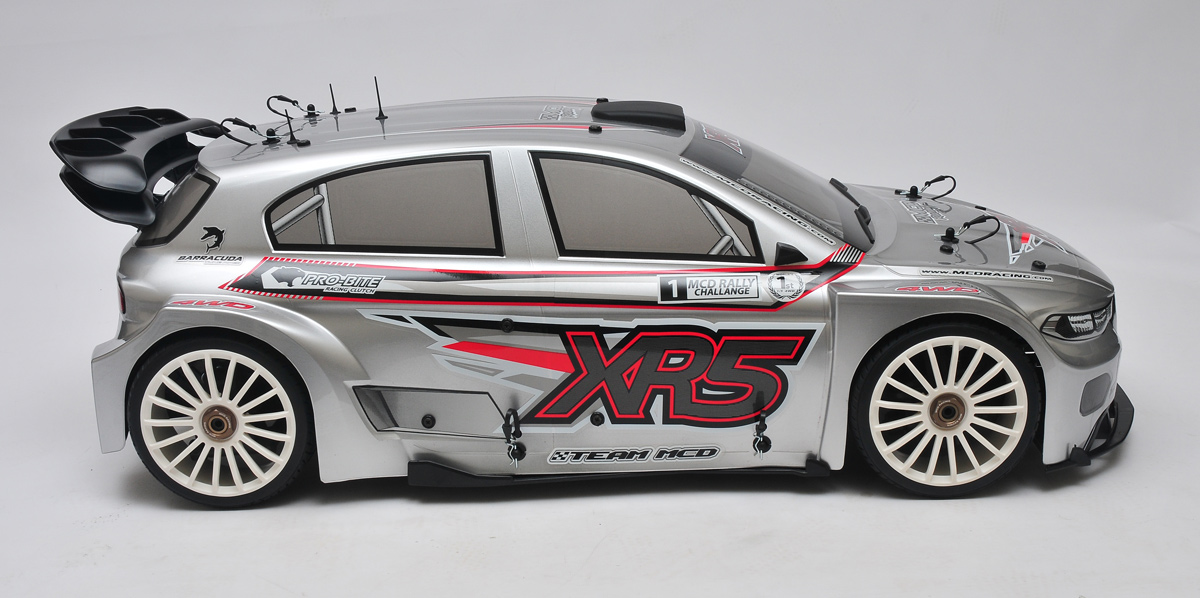

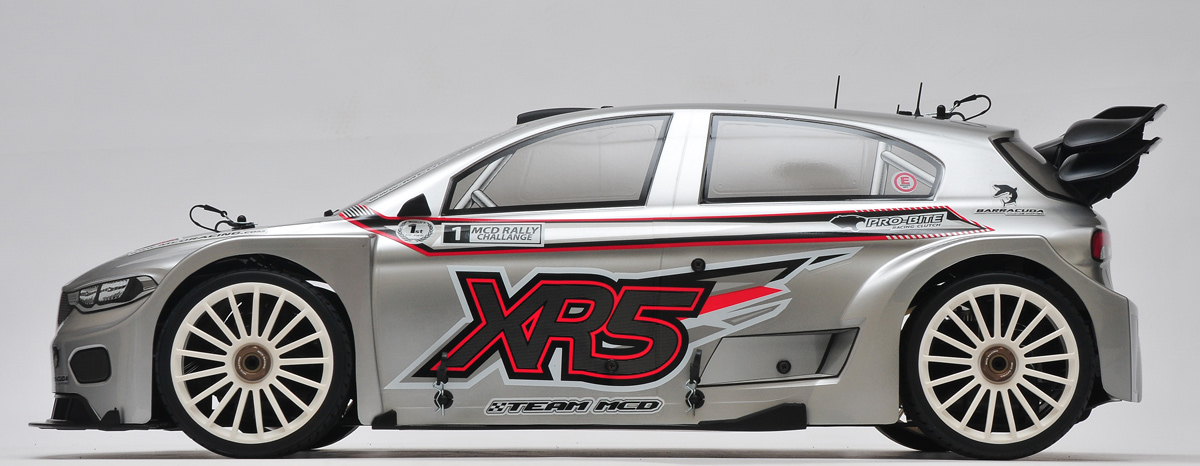

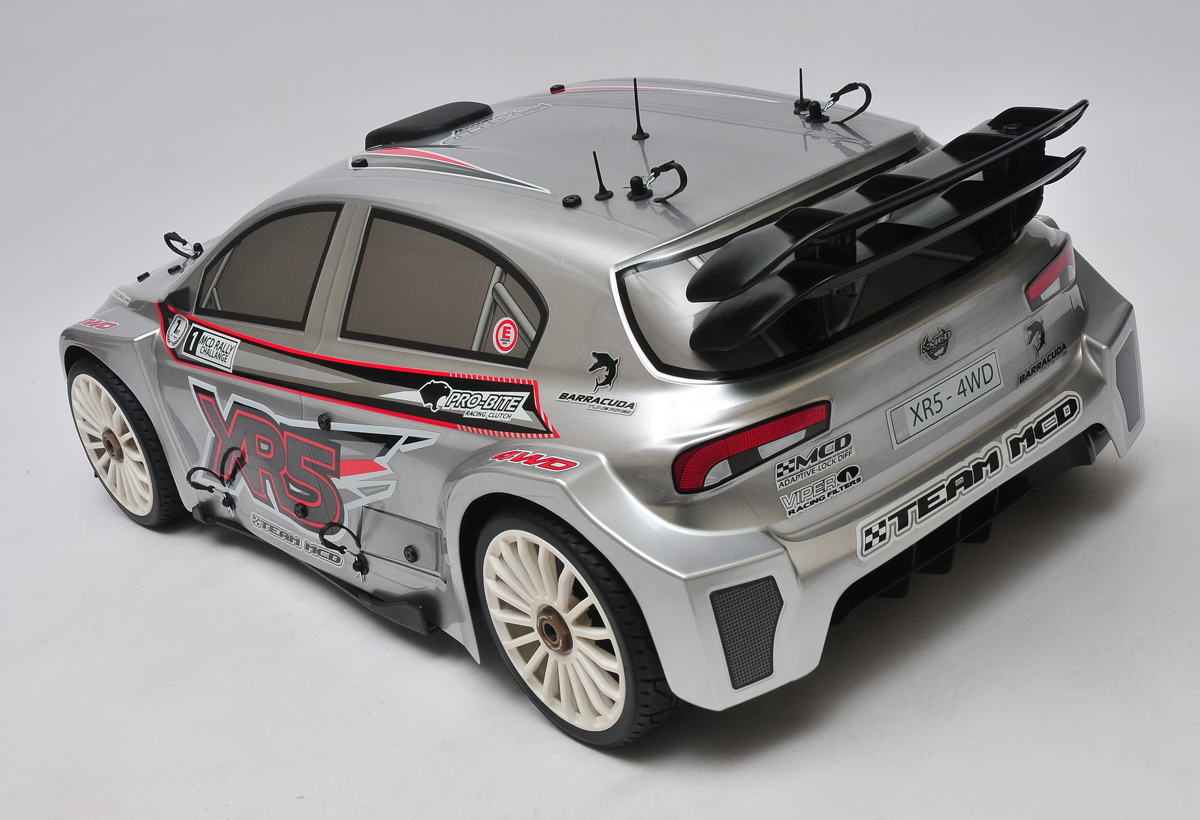

Cars come with a basic decal set, they may differ from the images on this page.
|
|
 |
|
