XS5-FT Spec

The pinnacle of the worlds large scale super sports car market.


Built on the proven 5 series MCD Racing chassis the XS-5 is defining the pinnacle of the worlds large scale super sports car market. The XS-5 is a precision engineering and superior handling machine combined with a unique design language emphasizing XS-5's aggressive and dynamic style.

The XS-5 is equipped with the finest accessories&parts such as the rear diffuser, rear wing, side wings, front bumper, new 160mm (6.3 inch) super-grip low profile on-road tires and new 17 spoke high performance rims. The new Rossa HS on-road tires will be available in two different compounds; white and blue spot.

 The XS-5 FT Features

  • Top of the line competition on-road super sports car
  • Easy assembly/dis-assembly
  • Easy maintenance
  • Centralized and compacted parts layout on chassis
  • Elite racing design ultra-durable high performance parts
  • Fifth generation MCD chassis & suspension arms
  • Sophisticated full-time 4WD Shaft Driven mechanics
  • Ultra strengthened chrome drive shaft and axle
  • New easy gear mesh system
  • Easily removable one-piece electronics tray

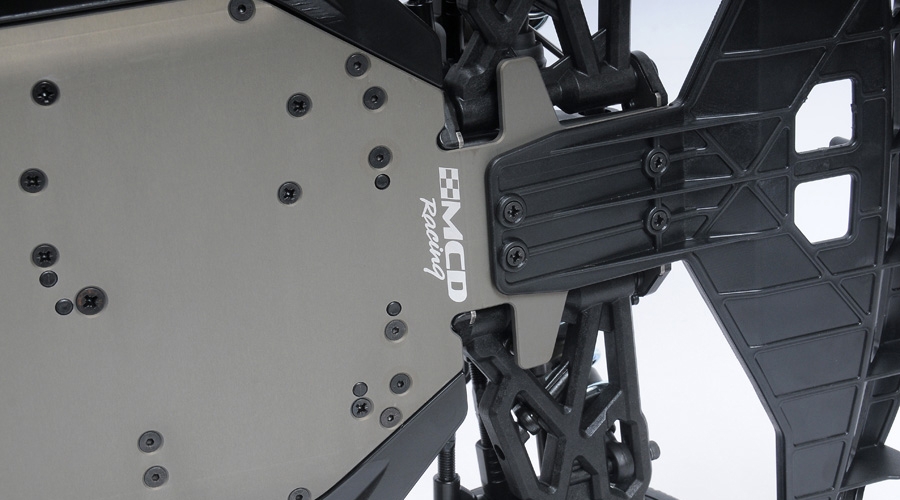

  • CNC machined light-weight 7075 aircraft alloy chassis
  • Strengthened wishbones

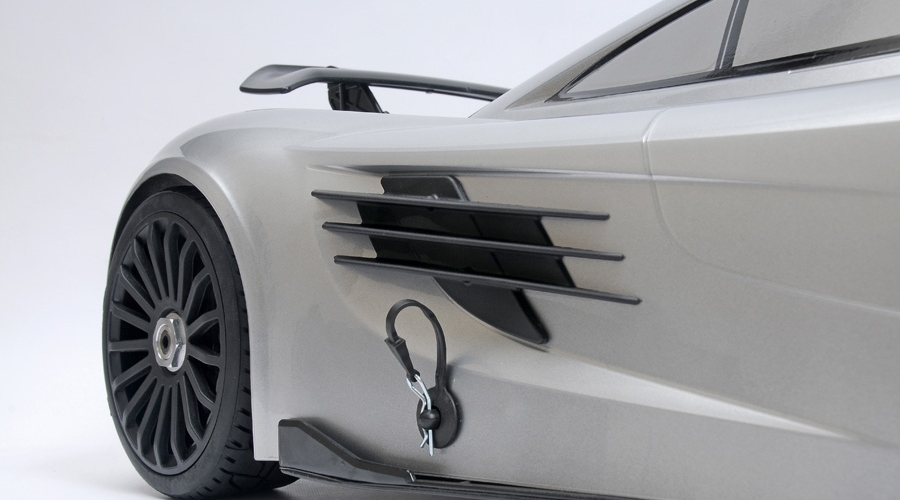

  • Solid and durable aerodynamic side guards

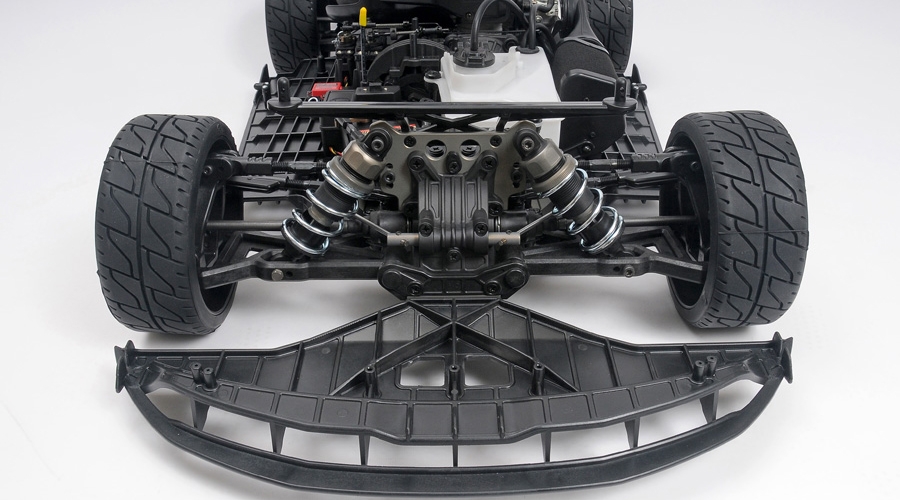

  • No-Stress-Effect polyamide front bumper
  • Solid and durable rear diffuser
  • Easily removable composite front, rear and center diff houses
  • Ultra durable front and rear adjustable brake system
  • Rear-brake only servo slot
  • 5mm light-weight 7075 air craft alloy front and rear towers
  • Optimized multiple shock mounting holes
  • Coil-over composite shock absorbers with High Pressurized Cell System
  • Ultra hardened steel transmission gears
  • Bearing anti-roll bars
  • New ball cup-joints
  • Improved brake linkage
  • Super-Cooling V5 air ventilation system (Optional)

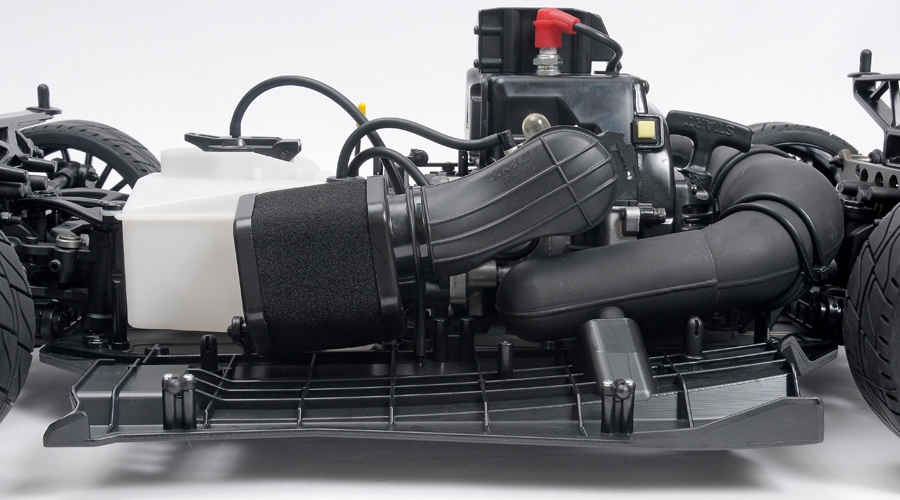

  • New Viper Racing Air Filters
  • New Barracuda G performance exhaust improved for V5 Chassis (Optional)
  • Adjustable CG
  • Adjustable weight distribution
  • Molded fuel tank with shake absorbing separators
  • Front/rear/central 60° - 90° - 120° ramp self locking diffs
  • Fully composite body accessories

Competition vs Factory Team comparison chart:



FT

Competition

Ultra strengthened chrome CCD drive shaft and axle

STD



STD



8620 differential spiral bevel gears

STD

STD

Front, center and rear 90° Adaptive Lock Differential

STD

OPT

Composite planetary differential case with 8620 steel gears

-

STD

Easily removable one-piece electronics tray

STD

STD

CNC machined, lightened 7075 aircraft alloy chassis

STD

OPT

CNC machined 5083 alloy chassis

-

STD

Extended wish-bones

Long Fiber Composite

Long Fiber Composite

Rossa HS Ultra Grip

STD

Blue Compound

OPT

Rossa HS Ultra Grip

OPT

STD

White compound

24 mm hexagonal rim-blocks

STD

STD

Composite molded durable side guards

STD

STD

Easily removable composite front, rear and center diff houses

STD

STD

Ultra durable front and rear adjustable steel disc brake rotors and pads

Front Double Discs

Bronze Pads

Single Disc

Steel Pads

CNC Machined 7075 air craft alloy front and rear towers

5 mm Lightened & Anodized

OPT

Optimized multiple suspension holes

2 shock absorber

3 roll-center linkage

2 shock absorber

3 roll-center linkage

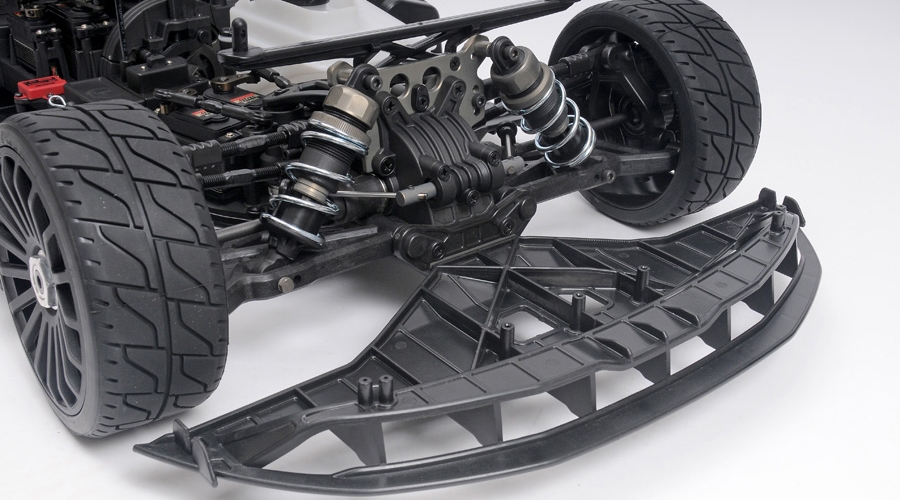

Coil-over extended composite shock absorbers

STD

with Internal High Pressure Cell System

STD

Alloy shock cap and ring

STD

OPT

Composite shock cap and ring

-

STD

Ultra hardened steel transmission gears

STD

Lightened

STD



Fully adjustable bearing sway bars

STD

OPT

No-Stress effect poly-amide front and rear bumper

STD

STD

Ball output couplings

STD

STD

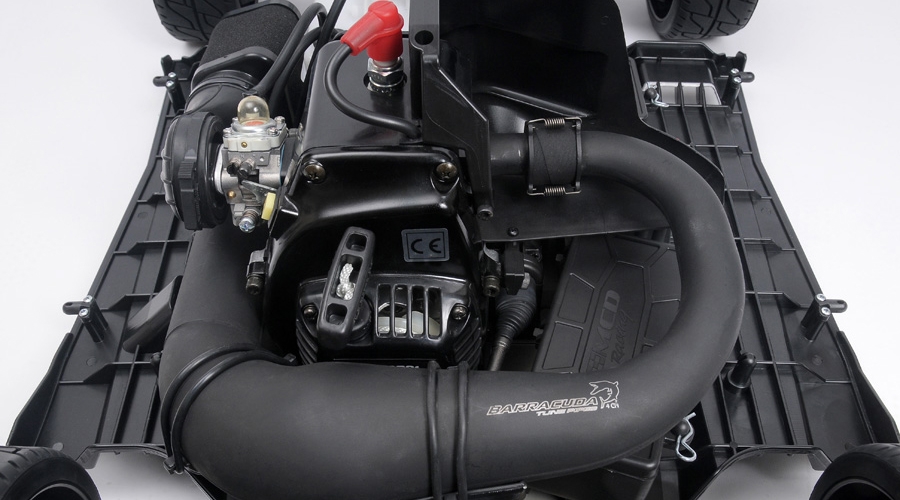

Barracuda V2 G performance Tune Pipe

OPT

OPT

Super-Cooling V5 air ventilation system

Optional with Barracuda V2

Tune Pipe

Optional with Barracuda V2

Tune Pipe

Rear brake only servo slot

STD

STD

Viper Racing Air Filters

STD

STD

Adjustable inboard and outboard toe with optional inserts

STD

OPT

Adjustable kick-up 8°-10° (with optional brackets)

STD

OPT

Adjustable 0°-3° anti-squat (with optional brackets)

STD

OPT

Front rear central 60° 90° 120° Self locking diffs

OPT

OPT

(available with adaptive lock diff only)

Pre-cut XS-5 Decal Set

STD

STD

Fully composite body accessories

STD

STD
Easy maintenance chassis layout. CNC machined light-weight 7075 aircraft alloy chassis Easily removable one-piece electronics tray On-Road Suspensions Aerodynamic side guards
17 spoke high performance rims No-Stress-Effect polyamide front bumper Solid & durable rear diffuser Super-Cooling RR5 air ventilation system Easy gear mesh system
Technical Specifications
Length : 910 mm
Width : 470 mm
Overall height : 250 mm
Ground clearance : 25-40 mm
Weight : 13.3kg - 13.7kg (depending on equipment installed)
Wheelbase : 565 mm ±8 mm (adjustable)
Trackwidth

: 402mm
Chassis material : T6 Alloy (4mm)
Suspension : Non-parallel non-line independent
Caster angle : 8° - 18° adjustable
Camber angle : Adjustable
Toe angle : In-board and out-board adjustable
Anti-squat : 3°
Kick-up : 8°-10° (adjustable)
Shock absorber : Coil-over Oil-filled with second floating piston
Transmission : Full-Time 4WD Shaft driven
Gear ratio : 7,88:1 (18 available 7,44:1 to 10,67:1)
Tyre size : 65 x 160 mm (Rossa HS Ultra Grip Compound)





Order code: 00533001  XS5 Factory Team Spec-w/o Engine
Recommended Retail Price: 1,699 EUR

Viper air filter

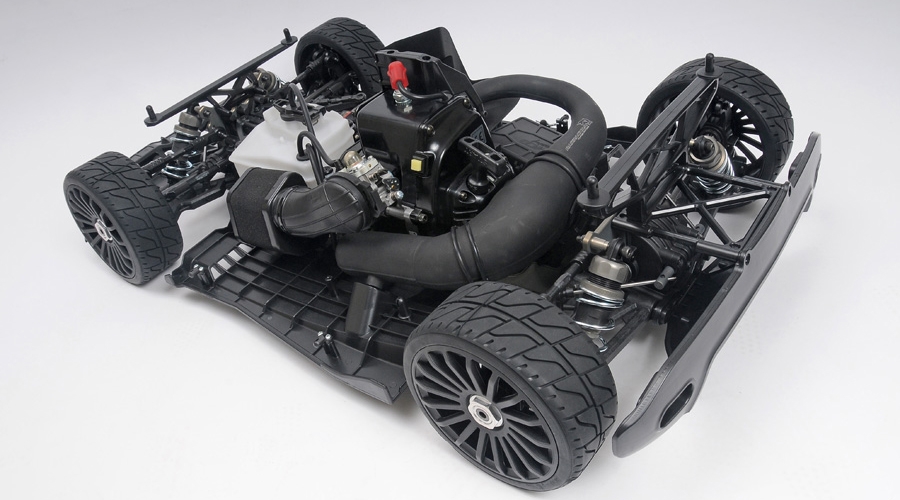

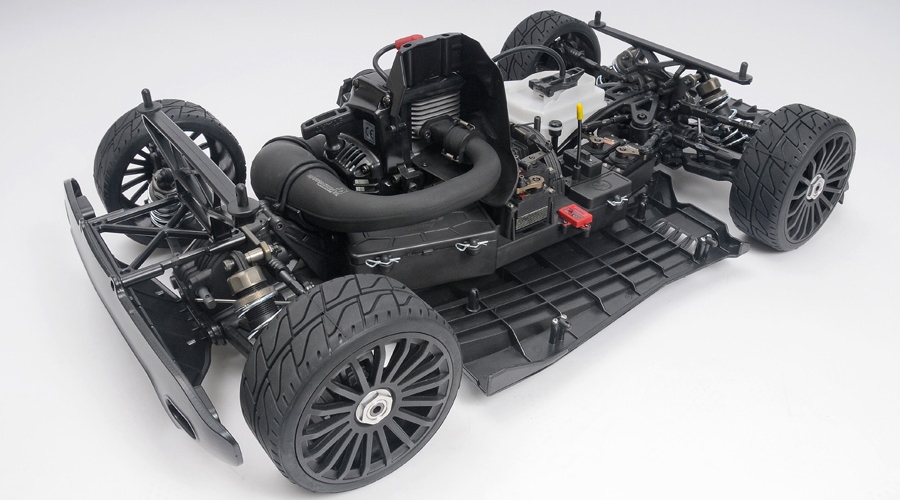

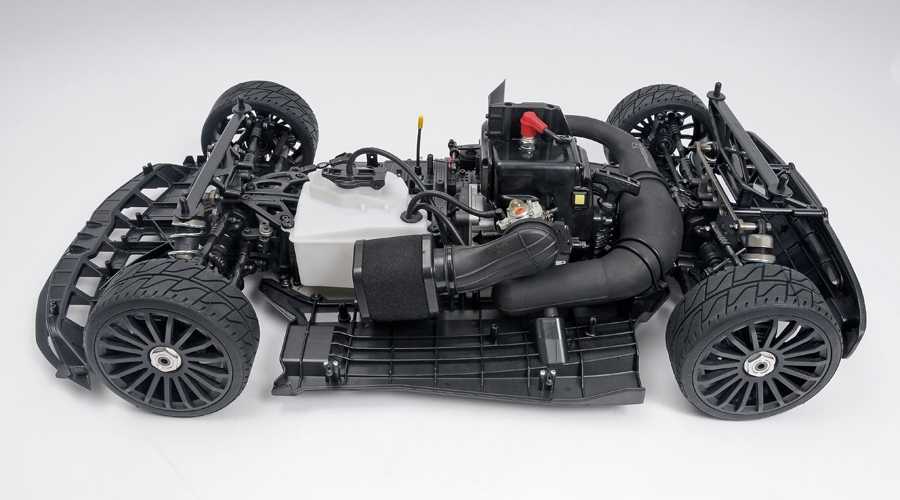

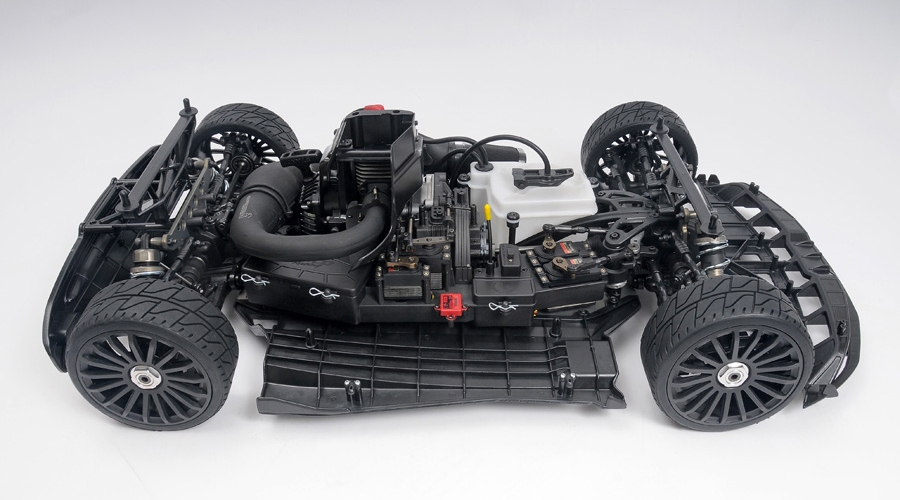

Some parts (engine, exhaust and radio gear) shown on the pictures are for photographing purposes only and not included in the car.
Required for operation (not included): Engine, 2 ch. Radio, 2x steering servos, 1 throttle/break servos
Photo Gallery
